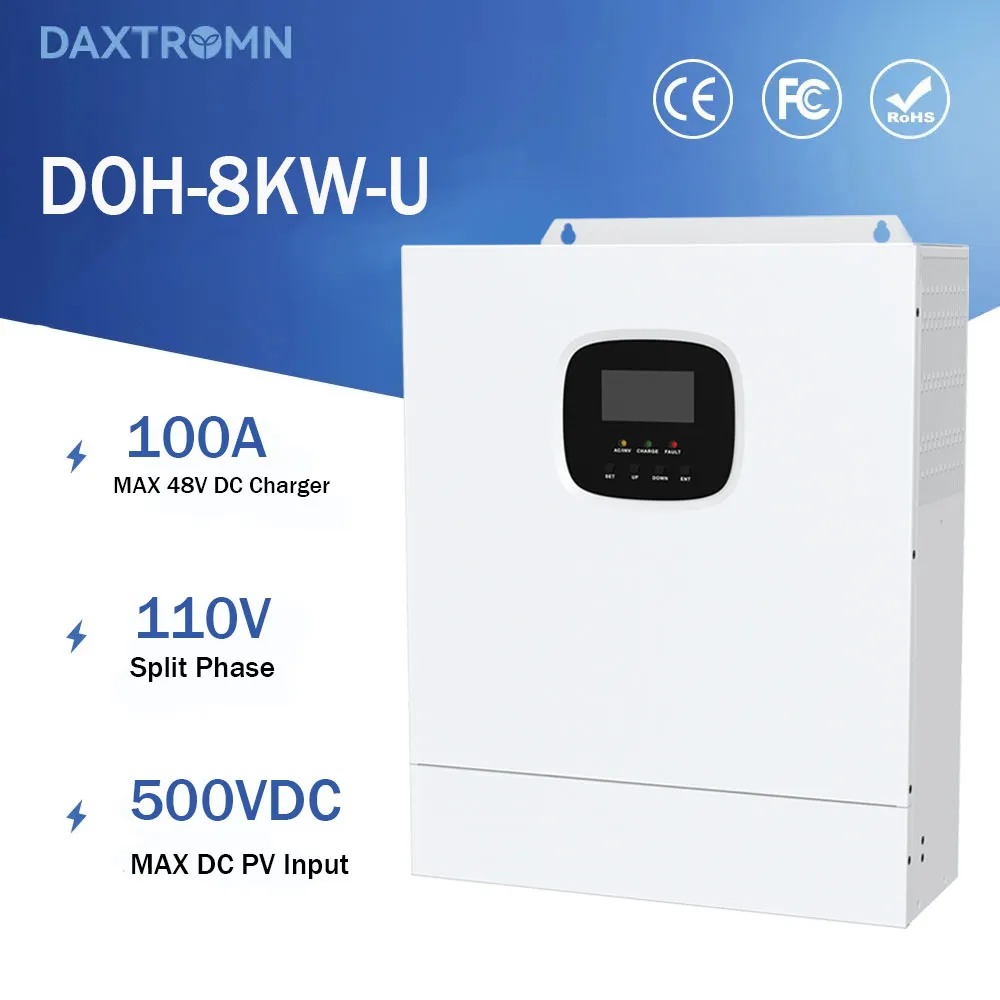

Daxtromn Power undefined DOH-8K-U

Daxtromn Power • DOH-8/10K-U

DOH-8K-U

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
11kW
Nominal AC Power
92%
Max Efficiency
445 x 620
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Daxtromn Power DOH-8K-U is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 11.0 kW residential or small commercial system
Use single-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Focus on grid-tied operation without battery storage

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power11 kW
Max Efficiency92 %
Euro Efficiency0 %
Max AC Current0 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)0 %

DC Input Data

MPP Voltage Range125~425 V
Max DC Voltage0 V
Min DC Voltage to Start0 V
Max DC Current44 A
Number of MPP Trackers2
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)445 x 620 x 130 mm
Weight27.0 kg
Protection ClassIP20
Cooling MethodFan
InterfaceRS 485, USB, WLAN

Operating Conditions

Operating Temperature-10 ~ +55 ℃
Frequency50, 60 Hz
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Daxtromn Power DOH-8K-U handle?

The Daxtromn Power DOH-8K-U has a nominal AC output of 11kW with a maximum efficiency of 92%. It is typically paired with a solar array of 13–14kW DC for optimal energy harvest.

Is the Daxtromn Power DOH-8K-U a hybrid inverter?

The Daxtromn Power DOH-8K-U is a off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Daxtromn Power DOH-8K-U have WiFi monitoring?

Most Daxtromn Power inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Daxtromn Power DOH-8K-U have?

This inverter features 2 independent MPPT trackers. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Daxtromn Power DOH-8K-U a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
