Hybrid

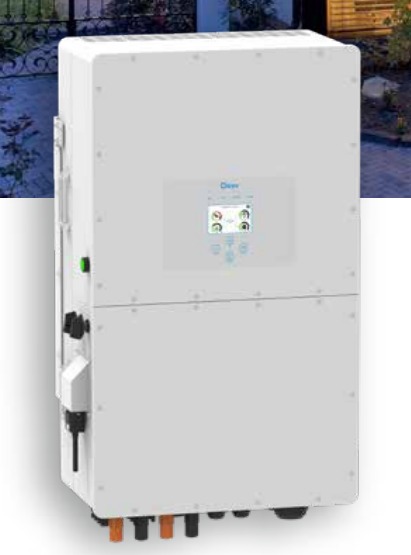

Deye undefined SUN-29.9K-SG01HP3 -EU-BM3

Deye • Deye Inverter SUN-29.9/30/35K-SG01HP3-EU-BM3 & SUN-40/50K-SG0...

SUN-29.9K-SG01HP3 -EU-BM3

Region:Bulgaria, China, Germany
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
38.87kW
Nominal AC Power
97.6%
Max Efficiency
527 x 894
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Deye SUN-29.9K-SG01HP3 -EU-BM3 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 38.9 kW commercial or industrial solar array
Use three-phase grid connection
Need 3 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power38.87 kW
Max Efficiency97.6 %
Euro Efficiency97 %
Max AC Current45.4 A
Rated AC Current45.4 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range150~850 V
Max DC Voltage1000 V
Rated DC Voltage600 V
Min DC Voltage to Start180 V
Max DC Current0 A
Number of MPP Trackers3
DC Inputs6

Mechanical & Environmental Data

Dimensions (W x H x D)527 x 894 x 294 mm
Weight80.0 kg
Protection ClassIP65
Cooling MethodFan
InterfaceRS 485

Operating Conditions

Operating Temperature-40 ~ +60 ℃
Frequency50, 60 Hz
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Deye SUN-29.9K-SG01HP3 -EU-BM3 handle?

The Deye SUN-29.9K-SG01HP3 -EU-BM3 has a nominal AC output of 38.87kW with a maximum efficiency of 97.6%. It is typically paired with a solar array of 47–51kW DC for optimal energy harvest.

Is the Deye SUN-29.9K-SG01HP3 -EU-BM3 a hybrid inverter?

Yes, the Deye SUN-29.9K-SG01HP3 -EU-BM3 is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Deye SUN-29.9K-SG01HP3 -EU-BM3 have WiFi monitoring?

Most Deye inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Deye SUN-29.9K-SG01HP3 -EU-BM3 have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Deye SUN-29.9K-SG01HP3 -EU-BM3 a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
