Easun • IGrid SV LV

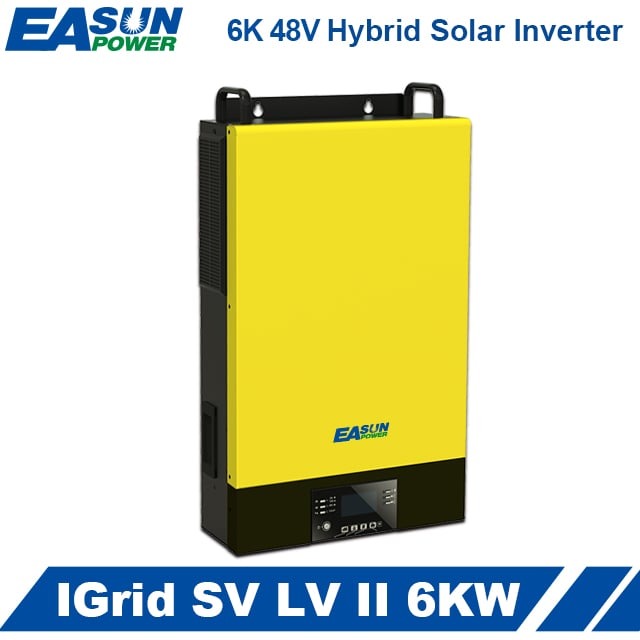

IGrid SV LV II 6K

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
6kW
Nominal AC Power
95%
Max Efficiency
295 x 505
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Easun IGrid SV LV II 6K is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a 6.0 kW residential PV system
Need 2 independent MPPT trackers for different roof orientations
Want to add battery storage now or in the future

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power6 kW
Max Efficiency95 %
Euro Efficiency0 %
Max AC Current0 A
Rated AC Current0 A
Number of Feed-in Phases0
THD (Total Harmonic Distortion)0 %

DC Input Data

MPP Voltage Range120~450 V
Max DC Voltage0 V
Min DC Voltage to Start0 V
Max DC Current0 A
Number of MPP Trackers2
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)295 x 505 x 120 mm
Weight11.5 kg

Operating Conditions

Frequency50, 60 Hz
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Easun IGrid SV LV II 6K handle?

The Easun IGrid SV LV II 6K has a nominal AC output of 6kW with a maximum efficiency of 95%. It is typically paired with a solar array of 7–8kW DC for optimal energy harvest.

Is the Easun IGrid SV LV II 6K a hybrid inverter?

Yes, the Easun IGrid SV LV II 6K is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Easun IGrid SV LV II 6K have WiFi monitoring?

Most Easun inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Easun IGrid SV LV II 6K have?

This inverter features 2 independent MPPT trackers. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.
