On-Grid

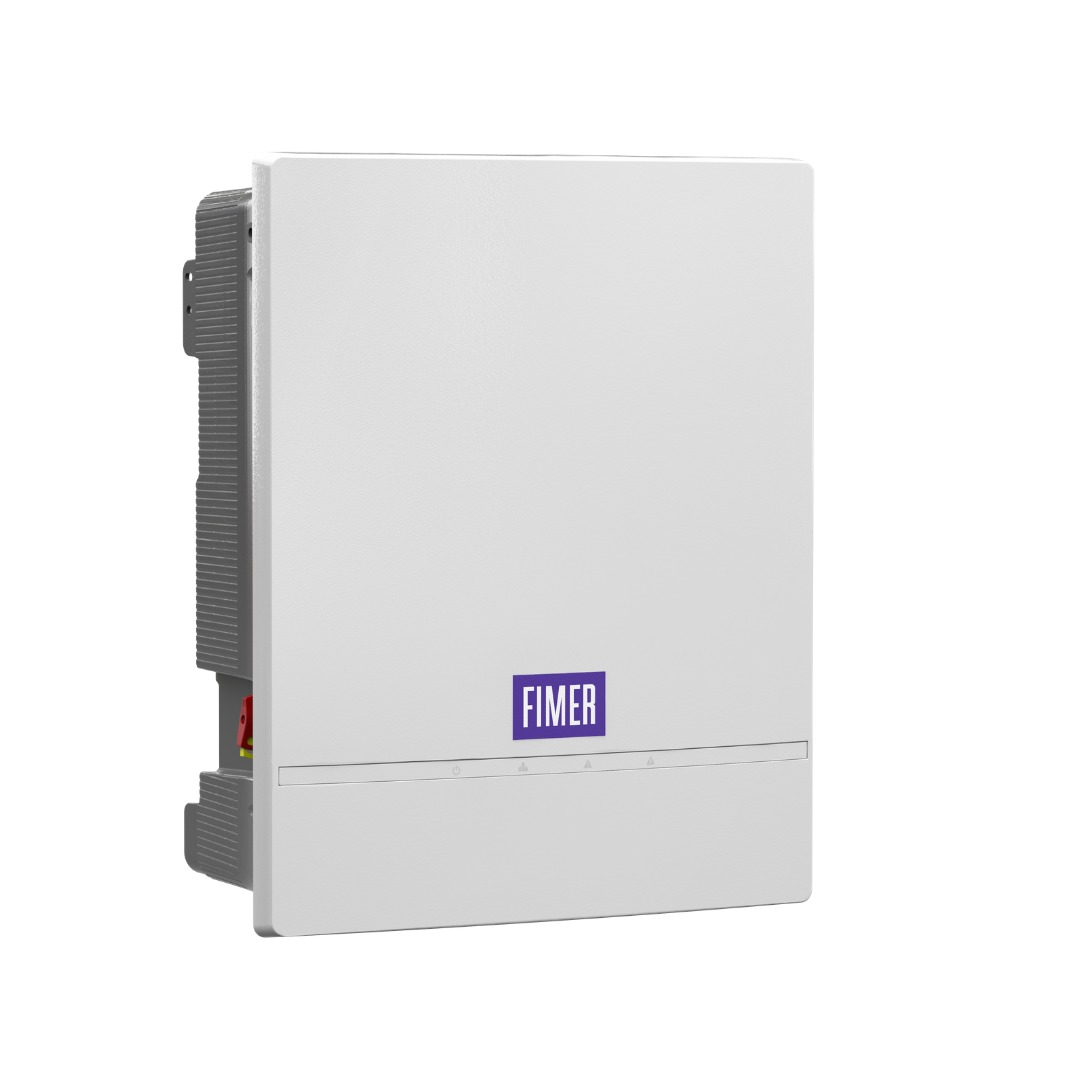

FIMER undefined PVS-15-TL

FIMER • PVS-10/12.5/15-TL

PVS-15-TL

Region:Italy
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
15.3kW
Nominal AC Power
98.5%
Max Efficiency
2 x 568
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The FIMER PVS-15-TL is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Operate a 15.3 kW commercial solar installation
Use three-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.5% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power15.3 kW
Max Efficiency98.5 %
Euro Efficiency98.2 %
Max AC Current23 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range200~1000 V
Max DC Voltage1100 V
Rated DC Voltage620 V
Min DC Voltage to Start250 V
Max DC Current22 A
Number of MPP Trackers2
DC Inputs4

Mechanical & Environmental Data

Dimensions (W x H x D)2 x 568 x 473 mm
Weight30.0 kg
Protection ClassIP65
Cooling MethodNatural
InterfaceRS 485, Ethernet, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity4-100 %
Frequency47-63 Hz
Max Altitude4000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the FIMER PVS-15-TL handle?

The FIMER PVS-15-TL has a nominal AC output of 15.3kW with a maximum efficiency of 98.5%. It is typically paired with a solar array of 18–20kW DC for optimal energy harvest.

Is the FIMER PVS-15-TL a hybrid inverter?

The FIMER PVS-15-TL is a on-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the FIMER PVS-15-TL have WiFi monitoring?

Most FIMER inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the FIMER PVS-15-TL have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 1100V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the FIMER PVS-15-TL a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
