Hybrid

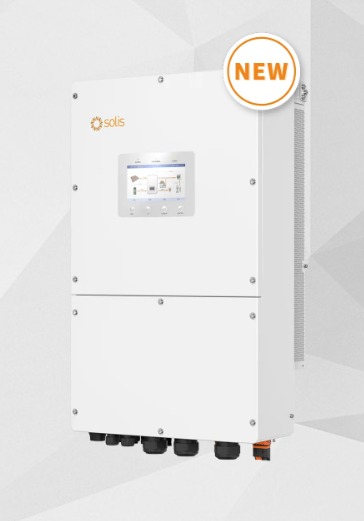

Ginlong Solis undefined 35K

Ginlong Solis • S6-EH3P35K-H-LV(21A)

35K

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
35kW
Nominal AC Power
96.3%
Max Efficiency
530 x 880
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Ginlong Solis 35K is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 35.0 kW commercial or industrial solar array
Use three-phase grid connection
Need 3 independent MPPT trackers for different roof orientations
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power35 kW
Max Efficiency96.3 %
Euro Efficiency95.5 %
Max AC Current0 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range150~850 V
Max DC Voltage1000 V
Rated DC Voltage600 V
Min DC Voltage to Start180 V
Max DC Current42 A
Number of MPP Trackers3
DC Inputs6
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)530 x 880 x 290 mm
Weight76.0 kg
Protection ClassIP66
Cooling MethodFan
DisplayLCD
InterfaceRS 485, Bluetooth, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50, 60 Hz
Max Altitude4000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Ginlong Solis 35K handle?

The Ginlong Solis 35K has a nominal AC output of 35kW with a maximum efficiency of 96.3%. It is typically paired with a solar array of 42–46kW DC for optimal energy harvest.

Is the Ginlong Solis 35K a hybrid inverter?

Yes, the Ginlong Solis 35K is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Ginlong Solis 35K have WiFi monitoring?

Most Ginlong Solis inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Ginlong Solis 35K have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Ginlong Solis 35K a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
