On-Grid, Off-Grid

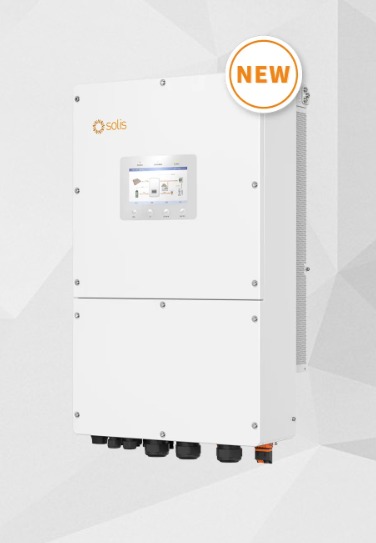

Ginlong Solis undefined 60K

Ginlong Solis • S6-EH3P60K-H(21A) Solarator Series

60K

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
60kW
Nominal AC Power
97.7%
Max Efficiency
530 x 880
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Ginlong Solis 60K is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 60.0 kW commercial or industrial solar array
Use three-phase grid connection
Need 4 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power60 kW
Max Efficiency97.7 %
Euro Efficiency97.3 %
Max AC Current0 A
Rated AC Current91.2 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range150~850 V
Max DC Voltage1000 V
Rated DC Voltage600 V
Min DC Voltage to Start180 V
Max DC Current42 A
Number of MPP Trackers4
DC Inputs8
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)530 x 880 x 290 mm
Weight76.0 kg
Protection ClassIP66
Cooling MethodFan
DisplayLCD
InterfaceRS 485, Bluetooth, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50, 60 Hz
Max Altitude4000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Ginlong Solis 60K handle?

The Ginlong Solis 60K has a nominal AC output of 60kW with a maximum efficiency of 97.7%. It is typically paired with a solar array of 72–78kW DC for optimal energy harvest.

Is the Ginlong Solis 60K a hybrid inverter?

The Ginlong Solis 60K is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Ginlong Solis 60K have WiFi monitoring?

Most Ginlong Solis inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Ginlong Solis 60K have?

This inverter features 4 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Ginlong Solis 60K a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
