Hybrid

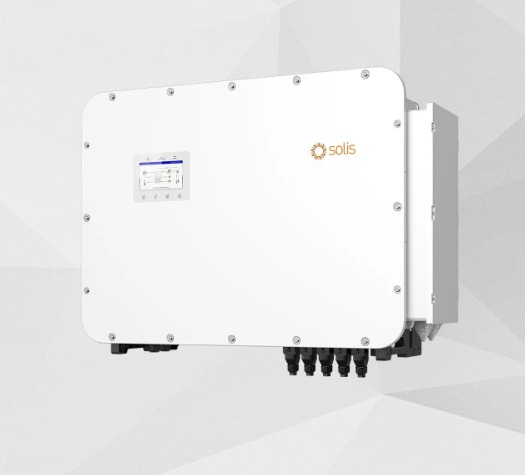

Ginlong Solis undefined S6-EH3P80K10-NV-YD-H Solarator Series

Ginlong Solis • Ginlong Solis S6-EH3P(80-125)K10-NV-YD-H

S6-EH3P80K10-NV-YD-H Solarator Series

Region:Romania
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
80kW
Nominal AC Power
97.6%
Max Efficiency
1174 x 814
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Ginlong Solis S6-EH3P80K10-NV-YD-H Solarator Series is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 80.0 kW commercial or industrial solar array
Use three-phase grid connection
Need 10 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power80 kW
Max Efficiency97.6 %
Euro Efficiency97.2 %
Max AC Current0 A
Rated AC Current121.6 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range150~950 V
Max DC Voltage1000 V
Rated DC Voltage600 V
Min DC Voltage to Start180 V
Max DC Current42 A
Number of MPP Trackers10
DC Inputs20
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)1174 x 814 x 400 mm
Weight170.0 kg
Protection ClassIP66
Cooling MethodFan
DisplayLCD
InterfaceRS 485, Ethernet, Bluetooth, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Frequency50, 60 Hz
Max Altitude3000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Ginlong Solis S6-EH3P80K10-NV-YD-H Solarator Series handle?

The Ginlong Solis S6-EH3P80K10-NV-YD-H Solarator Series has a nominal AC output of 80kW with a maximum efficiency of 97.6%. It is typically paired with a solar array of 96–104kW DC for optimal energy harvest.

Is the Ginlong Solis S6-EH3P80K10-NV-YD-H Solarator Series a hybrid inverter?

Yes, the Ginlong Solis S6-EH3P80K10-NV-YD-H Solarator Series is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Ginlong Solis S6-EH3P80K10-NV-YD-H Solarator Series have WiFi monitoring?

Most Ginlong Solis inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Ginlong Solis S6-EH3P80K10-NV-YD-H Solarator Series have?

This inverter features 10 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Ginlong Solis S6-EH3P80K10-NV-YD-H Solarator Series a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
