Off-Grid

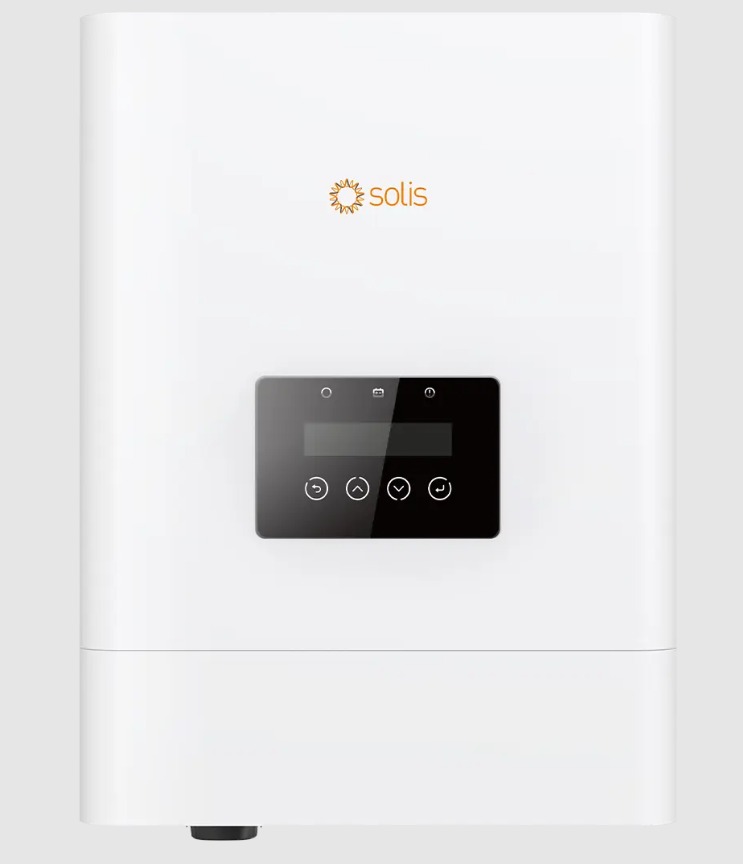

Ginlong Solis undefined S6-EO1P5K-48

Ginlong Solis • S6-EO1P(4-5)K-48

S6-EO1P5K-48

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
5kW
Nominal AC Power
96.6%
Max Efficiency
340 x 480
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Ginlong Solis S6-EO1P5K-48 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a 5.0 kW residential PV system
Use single-phase grid connection
Have panels with uniform orientation and tilt
Focus on grid-tied operation without battery storage
Install in hot climate regions

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power5 kW
Max Efficiency96.6 %
Euro Efficiency0 %
Max AC Current25 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range90~430 V
Max DC Voltage90 V
Min DC Voltage to Start0 V
Max DC Current16 A
Number of MPP Trackers1
DC Inputs2
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)340 x 480 x 170 mm
Weight13.8 kg
Protection ClassIP21
DisplayLCD
InterfaceBluetooth, WLAN

Operating Conditions

Operating Temperature-10 ~ +60 ℃
Humidity5-95 %
Frequency50, 60 Hz
Max Altitude2000 m
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Ginlong Solis S6-EO1P5K-48 handle?

The Ginlong Solis S6-EO1P5K-48 has a nominal AC output of 5kW with a maximum efficiency of 96.6%. It is typically paired with a solar array of 6–7kW DC for optimal energy harvest.

Is the Ginlong Solis S6-EO1P5K-48 a hybrid inverter?

The Ginlong Solis S6-EO1P5K-48 is a off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Ginlong Solis S6-EO1P5K-48 have WiFi monitoring?

Most Ginlong Solis inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Ginlong Solis S6-EO1P5K-48 have?

This inverter features 1 independent MPPT tracker with a maximum DC input voltage of 90V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Ginlong Solis S6-EO1P5K-48 a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
