On-Grid, Off-Grid

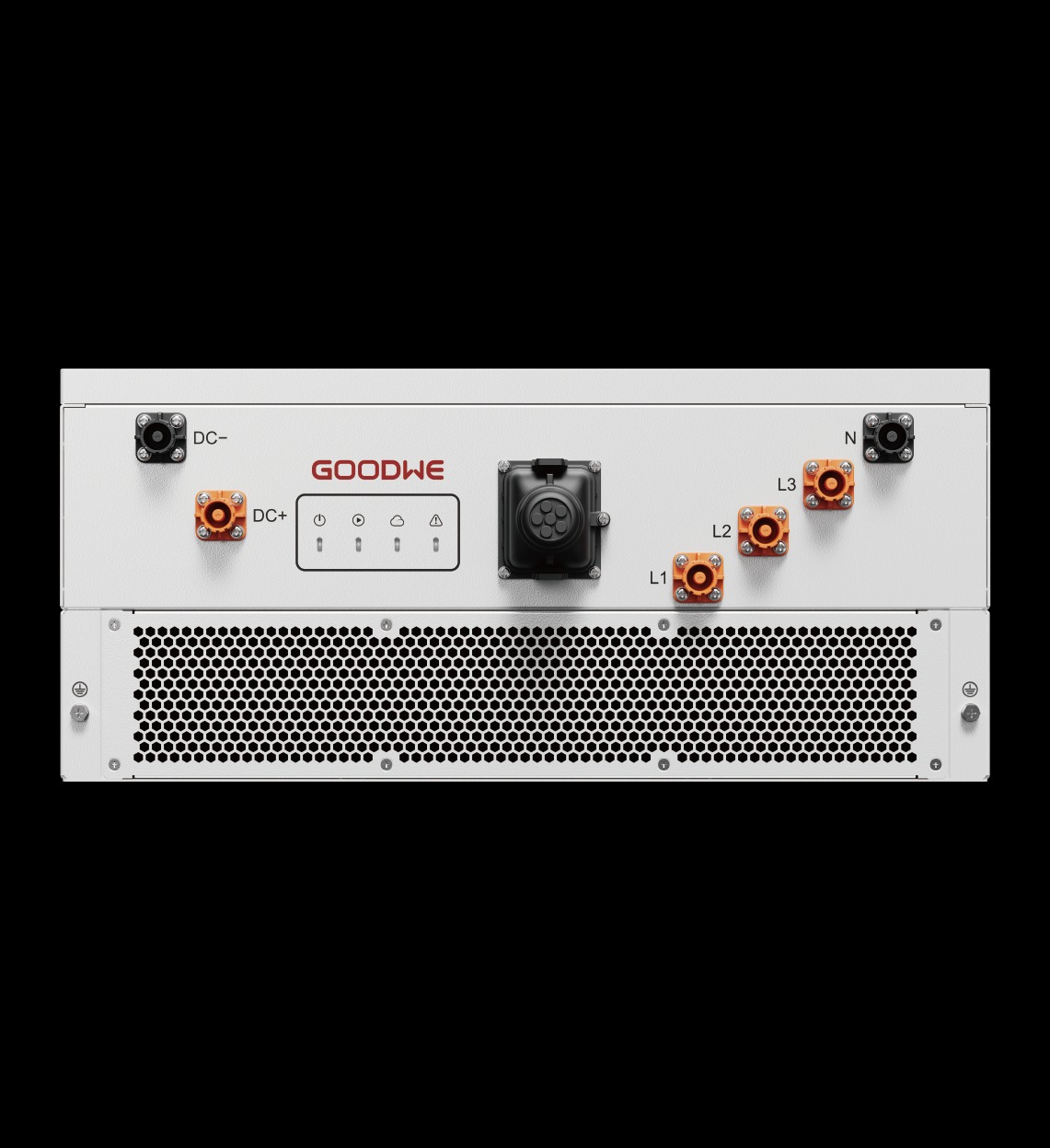

GoodWe undefined GW100-PCS-N-G11

GoodWe • PCS Series 100-125kW

GW100-PCS-N-G11

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
100kW
Nominal AC Power
98.6%
Max Efficiency
266 x 600
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The GoodWe GW100-PCS-N-G11 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 100.0 kW commercial or industrial solar array
Use three-phase grid connection
Want maximum energy harvest (98.6% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power100 kW
Max Efficiency98.6 %
Euro Efficiency0 %
Max AC Current158.8 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

Max DC Voltage0 V
Rated DC Voltage832 V
Min DC Voltage to Start670 V
Max DC Current0 A
Number of MPP Trackers0
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)266 x 600 x 900 mm
Weight80.0 kg
Protection ClassIP66
Cooling MethodFan
DisplayLED
InterfaceRS 485

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50 Hz
Max Altitude4000 m
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the GoodWe GW100-PCS-N-G11 handle?

The GoodWe GW100-PCS-N-G11 has a nominal AC output of 100kW with a maximum efficiency of 98.6%. It is typically paired with a solar array of 120–130kW DC for optimal energy harvest.

Is the GoodWe GW100-PCS-N-G11 a hybrid inverter?

The GoodWe GW100-PCS-N-G11 is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the GoodWe GW100-PCS-N-G11 have WiFi monitoring?

Most GoodWe inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

Is the GoodWe GW100-PCS-N-G11 a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
