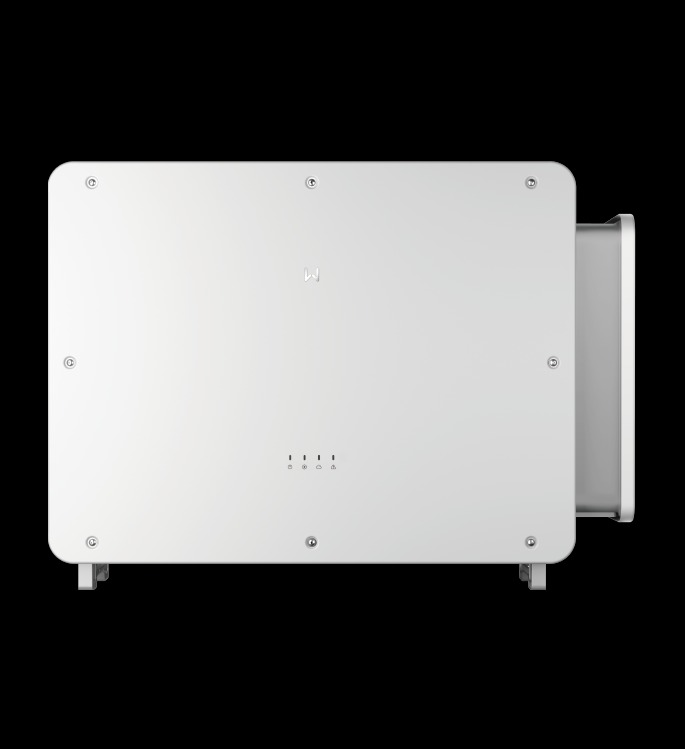

GoodWe undefined GW150K-GT-G10

GoodWe • GT Series 150KW

GW150K-GT-G10

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
150kW
Nominal AC Power
99%
Max Efficiency
995 x 758
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The GoodWe GW150K-GT-G10 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 150.0 kW commercial or industrial solar array
Use three-phase grid connection
Need 10 independent MPPT trackers for different roof orientations
Want maximum energy harvest (99.0% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power150 kW
Max Efficiency99 %
Euro Efficiency0 %
Max AC Current250.7 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range180~1000 V
Max DC Voltage1100 V
Rated DC Voltage600 V
Min DC Voltage to Start200 V
Max DC Current0 A
Number of MPP Trackers10
DC Inputs2

Mechanical & Environmental Data

Dimensions (W x H x D)995 x 758 x 358 mm
Weight99.0 kg
Protection ClassIP66
Cooling MethodFan
DisplayLED
InterfaceRS 485, WLAN

Operating Conditions

Operating Temperature-30 ~ +60 ℃
Humidity0-100 %
Frequency50 Hz
Max Altitude4000 m
Power Consumption (Night)2 W

Similar Products

Product FAQ

What size solar array can the GoodWe GW150K-GT-G10 handle?

The GoodWe GW150K-GT-G10 has a nominal AC output of 150kW with a maximum efficiency of 99%. It is typically paired with a solar array of 180–195kW DC for optimal energy harvest.

Is the GoodWe GW150K-GT-G10 a hybrid inverter?

The GoodWe GW150K-GT-G10 is a on-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the GoodWe GW150K-GT-G10 have WiFi monitoring?

Most GoodWe inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the GoodWe GW150K-GT-G10 have?

This inverter features 10 independent MPPT trackers with a maximum DC input voltage of 1100V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the GoodWe GW150K-GT-G10 a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
