On-Grid, Off-Grid

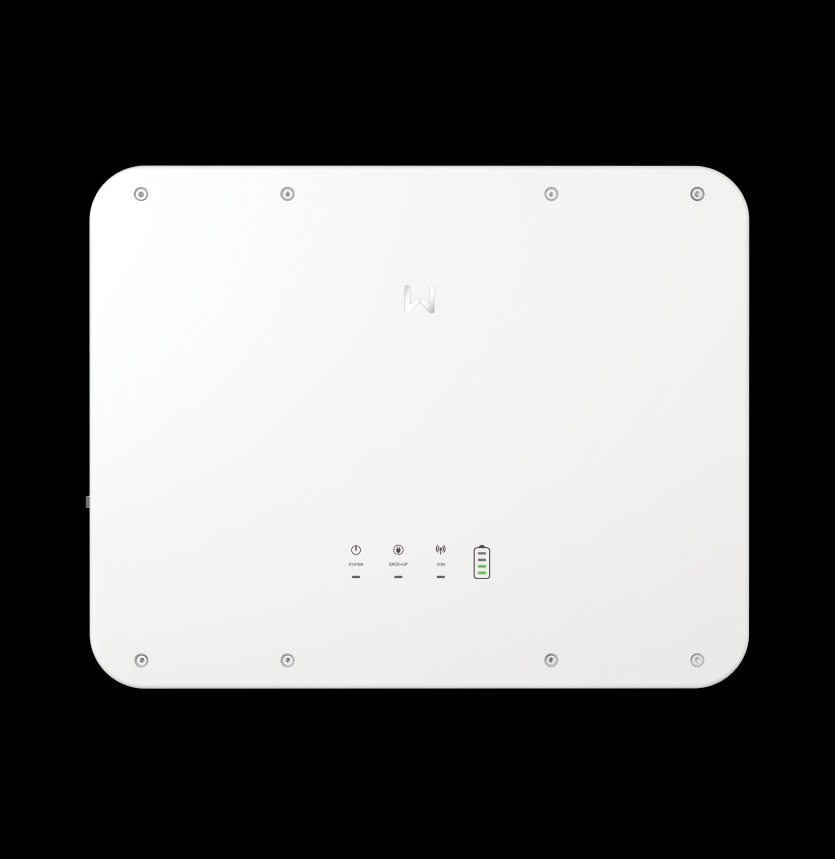

GoodWe undefined GW5000-ES-C10

GoodWe • ES Uniq Series 3-12kW

GW5000-ES-C10

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
5kW
Nominal AC Power
97.6%
Max Efficiency
415 x 560
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The GoodWe GW5000-ES-C10 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a 5.0 kW residential PV system
Use single-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power5 kW
Max Efficiency97.6 %
Euro Efficiency0 %
Max AC Current40 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range60~550 V
Max DC Voltage0 V
Rated DC Voltage360 V
Min DC Voltage to Start58 V
Max DC Current0 A
Number of MPP Trackers2
DC Inputs1

Mechanical & Environmental Data

Dimensions (W x H x D)415 x 560 x 204 mm
Weight14.5 kg
Protection ClassIP66
Cooling MethodFan
DisplayLCD
InterfaceRS 485, Bluetooth, WLAN

Operating Conditions

Operating Temperature-35 ~ +60 ℃
Humidity0-95 %
Frequency50 Hz
Max Altitude3000 m
Power Consumption (Night)10 W

Similar Products

Product FAQ

What size solar array can the GoodWe GW5000-ES-C10 handle?

The GoodWe GW5000-ES-C10 has a nominal AC output of 5kW with a maximum efficiency of 97.6%. It is typically paired with a solar array of 6–7kW DC for optimal energy harvest.

Is the GoodWe GW5000-ES-C10 a hybrid inverter?

The GoodWe GW5000-ES-C10 is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the GoodWe GW5000-ES-C10 have WiFi monitoring?

Most GoodWe inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the GoodWe GW5000-ES-C10 have?

This inverter features 2 independent MPPT trackers. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the GoodWe GW5000-ES-C10 a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
