On-Grid, Off-Grid

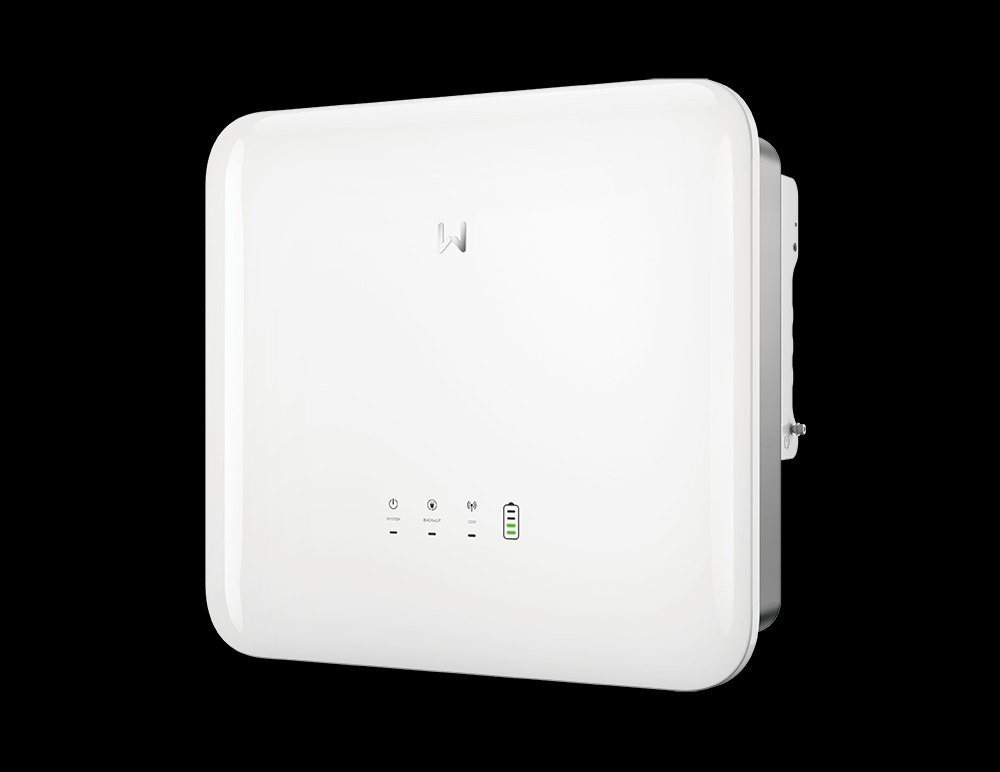

GoodWe undefined GW6000-ET-20

GoodWe • ET G2 Series 6-15kW

GW6000-ET-20

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
6kW
Nominal AC Power
98%
Max Efficiency
496 x 460
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The GoodWe GW6000-ET-20 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a 6.0 kW residential PV system
Use three-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.0% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power6 kW
Max Efficiency98 %
Euro Efficiency0 %
Max AC Current15.7 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range120~850 V
Max DC Voltage1000 V
Rated DC Voltage620 V
Min DC Voltage to Start150 V
Max DC Current0 A
Number of MPP Trackers2
DC Inputs1

Mechanical & Environmental Data

Dimensions (W x H x D)496 x 460 x 221 mm
Weight23.0 kg
Protection ClassIP66
Cooling MethodNatural
DisplayLED
InterfaceRS 485, WLAN

Operating Conditions

Operating Temperature-35 ~ +60 ℃
Humidity0-100 %
Frequency50 Hz
Max Altitude4000 m
Power Consumption (Night)15 W

Similar Products

Product FAQ

What size solar array can the GoodWe GW6000-ET-20 handle?

The GoodWe GW6000-ET-20 has a nominal AC output of 6kW with a maximum efficiency of 98%. It is typically paired with a solar array of 7–8kW DC for optimal energy harvest.

Is the GoodWe GW6000-ET-20 a hybrid inverter?

The GoodWe GW6000-ET-20 is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the GoodWe GW6000-ET-20 have WiFi monitoring?

Most GoodWe inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the GoodWe GW6000-ET-20 have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the GoodWe GW6000-ET-20 a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
