On-Grid, Off-Grid
Growatt undefined MIN 9000TL-X
View 1
View 2

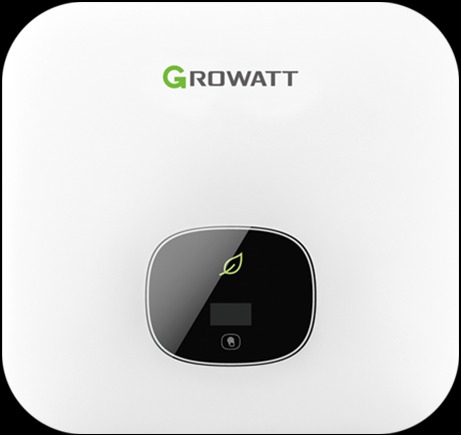

Growatt • MIN 7000-10000TL-X

MIN 9000TL-X

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
9kW
Nominal AC Power
98.1%
Max Efficiency
425 x 387
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Growatt MIN 9000TL-X is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 9.0 kW residential or small commercial system
Use single-phase grid connection
Need 3 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.1% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power9 kW
Max Efficiency98.1 %
Euro Efficiency97.6 %
Max AC Current43 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range60~550 V
Max DC Voltage600 V
Min DC Voltage to Start100 V
Max DC Current56 A
Number of MPP Trackers3
DC Inputs4
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)425 x 387 x 180 mm
Weight18.2 kg
Protection ClassIP66
Cooling MethodNatural
DisplayLED
InterfaceRS 485

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency45-60.5 Hz
Max Altitude4000 m
Transformer TypeTransformerless
Power Consumption (Night)1 W

Similar Products

Product FAQ

What size solar array can the Growatt MIN 9000TL-X handle?

The Growatt MIN 9000TL-X has a nominal AC output of 9kW with a maximum efficiency of 98.1%. It is typically paired with a solar array of 11–12kW DC for optimal energy harvest.

Is the Growatt MIN 9000TL-X a hybrid inverter?

The Growatt MIN 9000TL-X is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Growatt MIN 9000TL-X have WiFi monitoring?

Most Growatt inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Growatt MIN 9000TL-X have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 600V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Growatt MIN 9000TL-X a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
