Micro-inverter

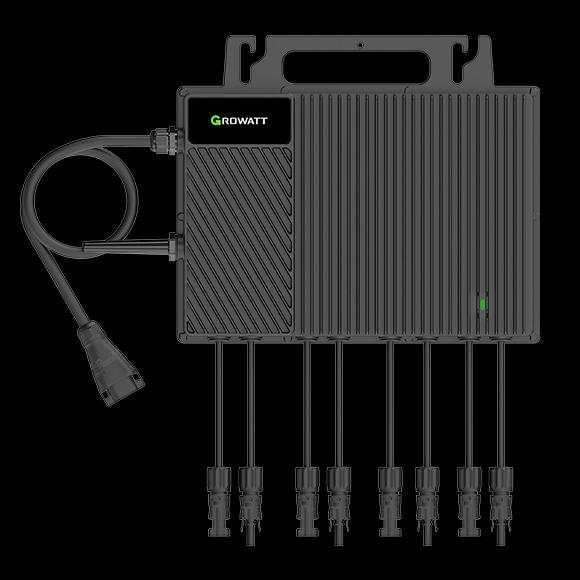

Growatt undefined NEO 2000M-X2

Growatt • NEO 1600-2500M-X2

NEO 2000M-X2

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
2kW
Nominal AC Power
96.5%
Max Efficiency
396 x 270
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Growatt NEO 2000M-X2 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a small residential system (2.0 kW or less)
Use single-phase grid connection
Need 4 independent MPPT trackers for different roof orientations
Focus on grid-tied operation without battery storage
Operate in extremely cold climates
Prefer silent, maintenance-free operation

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power2 kW
Max Efficiency96.5 %
Euro Efficiency0 %
Max AC Current9.09 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range16~55 V
Max DC Voltage60 V
Min DC Voltage to Start20 V
Max DC Current72 A
Number of MPP Trackers4
DC Inputs2

Mechanical & Environmental Data

Dimensions (W x H x D)396 x 270 x 45 mm
Weight5.1 kg
Protection ClassIP67, NEMA 6
Cooling MethodNatural
DisplayLED

Operating Conditions

Operating Temperature-40 ~ +65 ℃
Humidity0-100 %
Frequency45-60 Hz
Max Altitude4000 m
Transformer TypeYes
Power Consumption (Night)0.05 W

Similar Products

Product FAQ

What size solar array can the Growatt NEO 2000M-X2 handle?

The Growatt NEO 2000M-X2 has a nominal AC output of 2kW with a maximum efficiency of 96.5%. It is typically paired with a solar array of 2–3kW DC for optimal energy harvest.

Is the Growatt NEO 2000M-X2 a hybrid inverter?

The Growatt NEO 2000M-X2 is a micro-inverter inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Growatt NEO 2000M-X2 have WiFi monitoring?

Most Growatt inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Growatt NEO 2000M-X2 have?

This inverter features 4 independent MPPT trackers with a maximum DC input voltage of 60V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Growatt NEO 2000M-X2 a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
