Micro-inverter

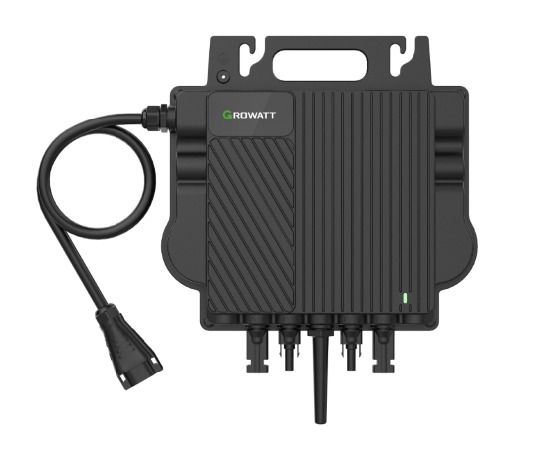

Growatt undefined NEO 800M-X (LoRa)

Growatt • NEO 600-1000M-X LoRa

NEO 800M-X (LoRa)

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
0.8kW
Nominal AC Power
97.3%
Max Efficiency
270 x 252
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Growatt NEO 800M-X (LoRa) is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a small residential system (0.8 kW or less)
Use single-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power0.8 kW
Max Efficiency97.3 %
Euro Efficiency0 %
Max AC Current0 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range28~60 V
Max DC Voltage60 V
Min DC Voltage to Start16 V
Max DC Current36 A
Number of MPP Trackers2
DC Inputs2

Mechanical & Environmental Data

Dimensions (W x H x D)270 x 252 x 41 mm
Weight3.1 kg
Protection ClassIP67
Cooling MethodNatural
DisplayLED

Operating Conditions

Operating Temperature-40 ~ +65 ℃
Humidity0-100 %
Frequency45-65 Hz
Max Altitude4000 m
Transformer TypeHigh Frequency-Transformer
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Growatt NEO 800M-X (LoRa) handle?

The Growatt NEO 800M-X (LoRa) has a nominal AC output of 0.8kW with a maximum efficiency of 97.3%. It is typically paired with a solar array of 1–1kW DC for optimal energy harvest.

Is the Growatt NEO 800M-X (LoRa) a hybrid inverter?

The Growatt NEO 800M-X (LoRa) is a micro-inverter inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Growatt NEO 800M-X (LoRa) have WiFi monitoring?

Most Growatt inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Growatt NEO 800M-X (LoRa) have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 60V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Growatt NEO 800M-X (LoRa) a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
