Hybrid

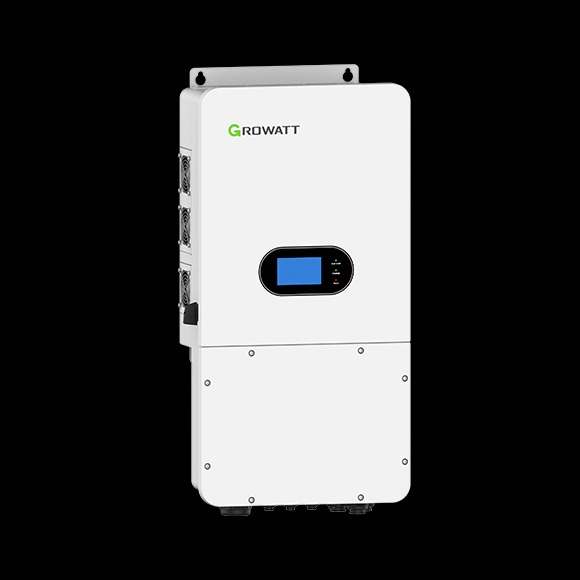

Growatt undefined SPH 10000TL-HU

Growatt • SPH 10000TL-HU

SPH 10000TL-HU

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
10kW
Nominal AC Power
97.5%
Max Efficiency
440 x 883
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Growatt SPH 10000TL-HU is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 10.0 kW residential or small commercial system
Use single-phase grid connection
Need 3 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power10 kW
Max Efficiency97.5 %
Euro Efficiency0 %
Max AC Current50 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range150~450 V
Max DC Voltage525 V
Min DC Voltage to Start150 V
Max DC Current66 A
Number of MPP Trackers3
DC Inputs6

Mechanical & Environmental Data

Dimensions (W x H x D)440 x 883 x 254 mm
Weight48.8 kg
Protection ClassIP65
Cooling MethodFan
DisplayLCD
InterfaceRS 485, USB, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50, 60 Hz
Max Altitude2000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Growatt SPH 10000TL-HU handle?

The Growatt SPH 10000TL-HU has a nominal AC output of 10kW with a maximum efficiency of 97.5%. It is typically paired with a solar array of 12–13kW DC for optimal energy harvest.

Is the Growatt SPH 10000TL-HU a hybrid inverter?

Yes, the Growatt SPH 10000TL-HU is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Growatt SPH 10000TL-HU have WiFi monitoring?

Most Growatt inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Growatt SPH 10000TL-HU have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 525V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Growatt SPH 10000TL-HU a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
