Hybrid

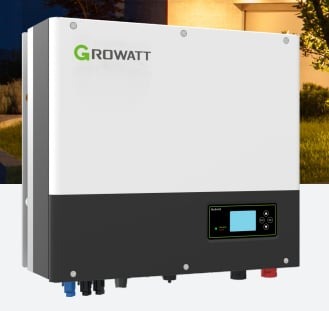

Growatt undefined SPH 5000TL3 BH-UP

Growatt • Growatt SPH 4000-10000TL3 BH-UP

SPH 5000TL3 BH-UP

Region:China, Bulgaria, Poland, France, Czech Republic
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
5kW
Nominal AC Power
97.8%
Max Efficiency
505 x 453
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Growatt SPH 5000TL3 BH-UP is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a 5.0 kW residential PV system
Use three-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power5 kW
Max Efficiency97.8 %
Euro Efficiency97.2 %
Max AC Current7.6 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range120~1000 V
Max DC Voltage1000 V
Min DC Voltage to Start120 V
Max DC Current27 A
Number of MPP Trackers2
DC Inputs2
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)505 x 453 x 198 mm
Weight30.0 kg
Protection ClassIP65
Cooling MethodNatural
DisplayLCD, LED
InterfaceRS 485, USB, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency45-65 Hz
Max Altitude3000 m
Transformer TypeTransformerless
Power Consumption (Night)13 W

Similar Products

Product FAQ

What size solar array can the Growatt SPH 5000TL3 BH-UP handle?

The Growatt SPH 5000TL3 BH-UP has a nominal AC output of 5kW with a maximum efficiency of 97.8%. It is typically paired with a solar array of 6–7kW DC for optimal energy harvest.

Is the Growatt SPH 5000TL3 BH-UP a hybrid inverter?

Yes, the Growatt SPH 5000TL3 BH-UP is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Growatt SPH 5000TL3 BH-UP have WiFi monitoring?

Most Growatt inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Growatt SPH 5000TL3 BH-UP have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Growatt SPH 5000TL3 BH-UP a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
