On-Grid, Off-Grid

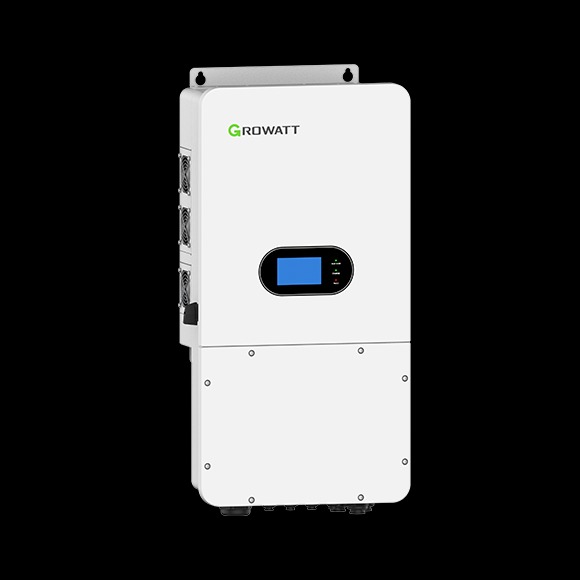

Growatt undefined SPM 10000TL-HU

Growatt • SPM 8000-10000TL-HU

SPM 10000TL-HU

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
9.999kW
Nominal AC Power
97.5%
Max Efficiency
440 x 883
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Growatt SPM 10000TL-HU is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 10.0 kW residential or small commercial system
Use single-phase grid connection
Need 3 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power9.999 kW
Max Efficiency97.5 %
Euro Efficiency96.5 %
Max AC Current50 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range150~500 V
Max DC Voltage600 V
Min DC Voltage to Start120 V
Max DC Current64 A
Number of MPP Trackers3
DC Inputs6
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)440 x 883 x 256 mm
Weight48.8 kg
Protection ClassIP65
Cooling MethodFan
DisplayLCD
InterfaceRS 485, USB, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50 Hz
Max Altitude2000 m
Transformer TypeTransformerless
Power Consumption (Night)75 W

Similar Products

Product FAQ

What size solar array can the Growatt SPM 10000TL-HU handle?

The Growatt SPM 10000TL-HU has a nominal AC output of 9.999kW with a maximum efficiency of 97.5%. It is typically paired with a solar array of 12–13kW DC for optimal energy harvest.

Is the Growatt SPM 10000TL-HU a hybrid inverter?

The Growatt SPM 10000TL-HU is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Growatt SPM 10000TL-HU have WiFi monitoring?

Most Growatt inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Growatt SPM 10000TL-HU have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 600V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Growatt SPM 10000TL-HU a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
