On-Grid, Off-Grid

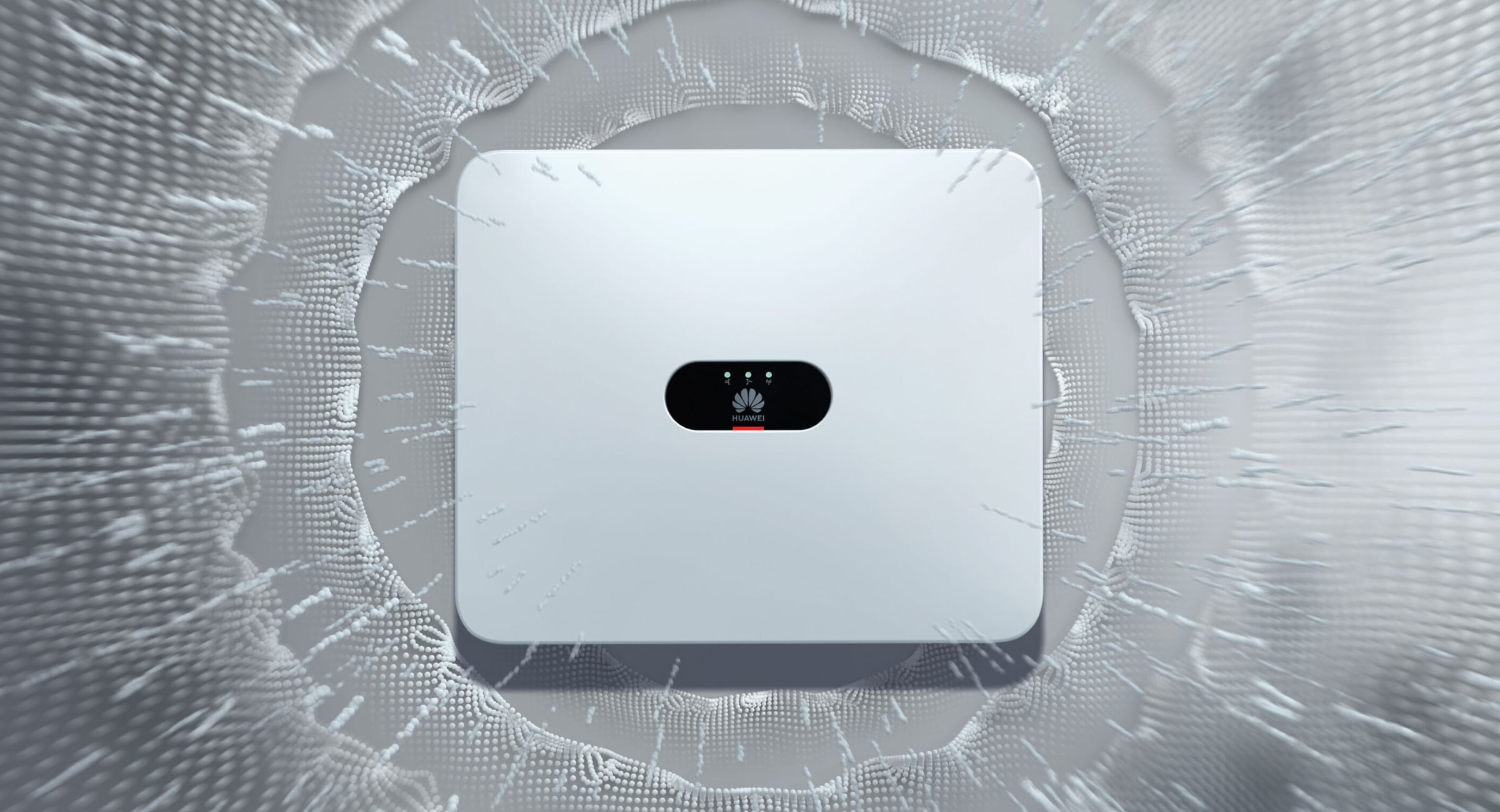

Huawei undefined SUN2000-10K-LC0-ZH

Huawei • SUN2000-8/10K-LC0

SUN2000-10K-LC0-ZH

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
10kW
Nominal AC Power
98.1%
Max Efficiency
376 x 425
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Huawei SUN2000-10K-LC0-ZH is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 10.0 kW residential or small commercial system
Use single-phase grid connection
Need 3 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.1% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power10 kW
Max Efficiency98.1 %
Euro Efficiency97.5 %
Max AC Current45.5 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range40~560 V
Max DC Voltage600 V
Rated DC Voltage360 V
Min DC Voltage to Start50 V
Max DC Current48 A
Number of MPP Trackers3
DC Inputs3

Mechanical & Environmental Data

Dimensions (W x H x D)376 x 425 x 5 mm
Weight14.5 kg
Protection ClassIP66
Cooling MethodNatural, Fan
DisplayLED
InterfaceRS 485, Ethernet, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50, 60 Hz
Max Altitude4000 m
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Huawei SUN2000-10K-LC0-ZH handle?

The Huawei SUN2000-10K-LC0-ZH has a nominal AC output of 10kW with a maximum efficiency of 98.1%. It is typically paired with a solar array of 12–13kW DC for optimal energy harvest.

Is the Huawei SUN2000-10K-LC0-ZH a hybrid inverter?

The Huawei SUN2000-10K-LC0-ZH is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Huawei SUN2000-10K-LC0-ZH have WiFi monitoring?

Most Huawei inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Huawei SUN2000-10K-LC0-ZH have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 600V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Huawei SUN2000-10K-LC0-ZH a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
