On-Grid, Off-Grid

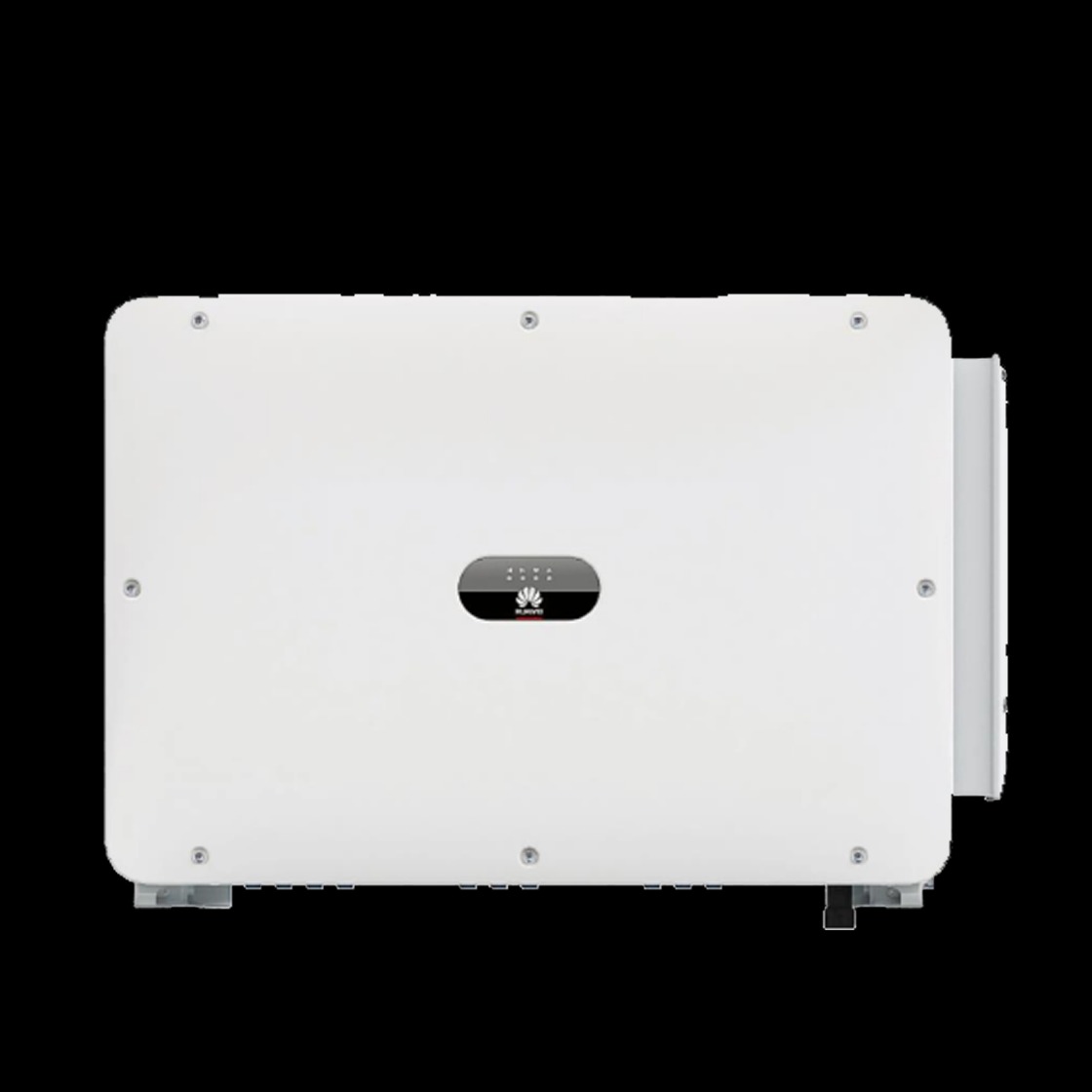

Huawei undefined SUN2000-150K-MG0-ZH

Huawei • SUN2000-150K-MG0-ZH (CN)

SUN2000-150K-MG0-ZH

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
150kW
Nominal AC Power
0%
Max Efficiency
710 x 1000
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Huawei SUN2000-150K-MG0-ZH is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 150.0 kW commercial or industrial solar array
Need 7 independent MPPT trackers for different roof orientations
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power150 kW
Max Efficiency0 %
Euro Efficiency0 %
Max AC Current253.2 A
Rated AC Current227.9 A
Number of Feed-in Phases0
THD (Total Harmonic Distortion)1 %

DC Input Data

MPP Voltage Range200~1000 V
Max DC Voltage1100 V
Min DC Voltage to Start200 V
Max DC Current336 A
Number of MPP Trackers7
DC Inputs21

Mechanical & Environmental Data

Dimensions (W x H x D)710 x 1000 x 395 mm
Weight102.0 kg
Protection ClassIP66
Cooling MethodFan
DisplayLED
InterfaceRS 485, USB, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50 Hz
Max Altitude5000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Huawei SUN2000-150K-MG0-ZH handle?

The Huawei SUN2000-150K-MG0-ZH has a nominal AC output of 150kW with a maximum efficiency of 0%. It is typically paired with a solar array of 180–195kW DC for optimal energy harvest.

Is the Huawei SUN2000-150K-MG0-ZH a hybrid inverter?

The Huawei SUN2000-150K-MG0-ZH is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Huawei SUN2000-150K-MG0-ZH have WiFi monitoring?

Most Huawei inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Huawei SUN2000-150K-MG0-ZH have?

This inverter features 7 independent MPPT trackers with a maximum DC input voltage of 1100V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.
