On-Grid, Off-Grid

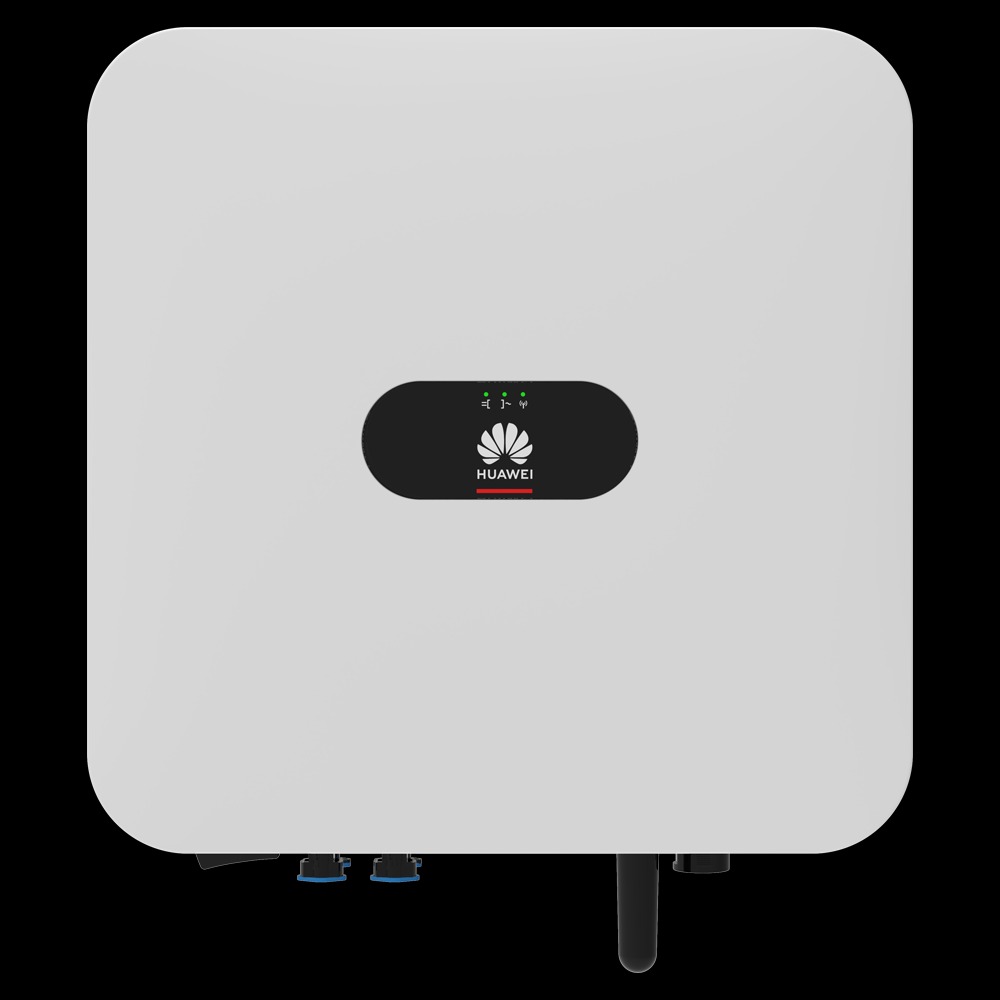

Huawei undefined SUN2000-4.95KTL-NHL2

Huawei • SUN2000-4.95KTL-NHL2 (JP)

SUN2000-4.95KTL-NHL2

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
4.95kW
Nominal AC Power
97.5%
Max Efficiency
365 x 365
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Huawei SUN2000-4.95KTL-NHL2 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a 5.0 kW residential PV system
Use three-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power4.95 kW
Max Efficiency97.5 %
Euro Efficiency0 %
Max AC Current0 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)0 %

DC Input Data

MPP Voltage Range90~560 V
Max DC Voltage600 V
Min DC Voltage to Start100 V
Max DC Current32 A
Number of MPP Trackers2
DC Inputs4

Mechanical & Environmental Data

Dimensions (W x H x D)365 x 365 x 156 mm
Weight11.6 kg
Protection ClassIP65
Cooling MethodNatural
DisplayLED
InterfaceRS 485, WLAN

Operating Conditions

Operating Temperature-30 ~ +60 ℃
Humidity0-100 %
Frequency50, 60 Hz
Max Altitude4000 m
Power Consumption (Night)2.5 W

Similar Products

Product FAQ

What size solar array can the Huawei SUN2000-4.95KTL-NHL2 handle?

The Huawei SUN2000-4.95KTL-NHL2 has a nominal AC output of 4.95kW with a maximum efficiency of 97.5%. It is typically paired with a solar array of 6–6kW DC for optimal energy harvest.

Is the Huawei SUN2000-4.95KTL-NHL2 a hybrid inverter?

The Huawei SUN2000-4.95KTL-NHL2 is a on-grid, off-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Huawei SUN2000-4.95KTL-NHL2 have WiFi monitoring?

Most Huawei inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Huawei SUN2000-4.95KTL-NHL2 have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 600V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Huawei SUN2000-4.95KTL-NHL2 a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
