Hybrid
Ingeteam undefined 110TL M9

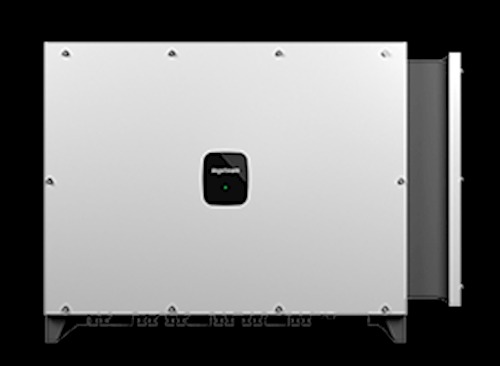

Ingeteam • 3 Play TL M Series 110TL M9

110TL M9

Region:Spain
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
110kW
Nominal AC Power
98.2%
Max Efficiency
936 x 678
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Ingeteam 110TL M9 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 110.0 kW commercial or industrial solar array
Use three-phase grid connection
Need 9 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.2% peak efficiency)
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power110 kW
Max Efficiency98.2 %
Euro Efficiency97.8 %
Max AC Current187 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)0 %

DC Input Data

MPP Voltage Range200~1000 V
Max DC Voltage1100 V
Rated DC Voltage600 V
Min DC Voltage to Start250 V
Max DC Current312 A
Number of MPP Trackers9
DC Inputs18

Mechanical & Environmental Data

Dimensions (W x H x D)936 x 678 x 365 mm
Weight92.0 kg
Protection ClassIP66
Cooling MethodFan
InterfaceEthernet, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50, 60 Hz
Max Altitude4000 m
Power Consumption (Night)10 W

Similar Products

Product FAQ

What size solar array can the Ingeteam 110TL M9 handle?

The Ingeteam 110TL M9 has a nominal AC output of 110kW with a maximum efficiency of 98.2%. It is typically paired with a solar array of 132–143kW DC for optimal energy harvest.

Is the Ingeteam 110TL M9 a hybrid inverter?

Yes, the Ingeteam 110TL M9 is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Ingeteam 110TL M9 have WiFi monitoring?

Most Ingeteam inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Ingeteam 110TL M9 have?

This inverter features 9 independent MPPT trackers with a maximum DC input voltage of 1100V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Ingeteam 110TL M9 a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
