On-Grid

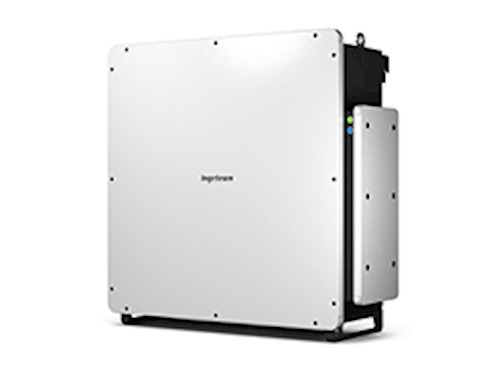

Ingeteam undefined 330TL M12

Ingeteam • 3 Play TL M Series 330TL M12

330TL M12

Region:Spain
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
0kW
Nominal AC Power
99.05%
Max Efficiency
1045 x 1045
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Ingeteam 330TL M12 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a small residential system (0.0 kW or less)
Need 12 independent MPPT trackers for different roof orientations
Want maximum energy harvest (99.0% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates
Want remote monitoring and control capabilities

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power0 kW
Max Efficiency99.05 %
Euro Efficiency98.6 %
Max AC Current238 A
Rated AC Current0 A
Number of Feed-in Phases0
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range850~1300 V
Max DC Voltage1500 V
Min DC Voltage to Start0 V
Max DC Current540 A
Number of MPP Trackers12
DC Inputs24
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)1045 x 1045 x 400 mm
Weight150.0 kg
Protection ClassIP66
Cooling MethodFan
InterfaceEthernet, WLAN

Operating Conditions

Operating Temperature-30 ~ +60 ℃
Humidity0-100 %
Frequency50, 60 Hz
Max Altitude4000 m
Power Consumption (Night)25 W

Similar Products

Product FAQ

What size solar array can the Ingeteam 330TL M12 handle?

The Ingeteam 330TL M12 has a nominal AC output of 0kW with a maximum efficiency of 99.05%. It is typically paired with a solar array of 0–0kW DC for optimal energy harvest.

Is the Ingeteam 330TL M12 a hybrid inverter?

The Ingeteam 330TL M12 is a on-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Ingeteam 330TL M12 have WiFi monitoring?

Most Ingeteam inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Ingeteam 330TL M12 have?

This inverter features 12 independent MPPT trackers with a maximum DC input voltage of 1500V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.
