On-Grid

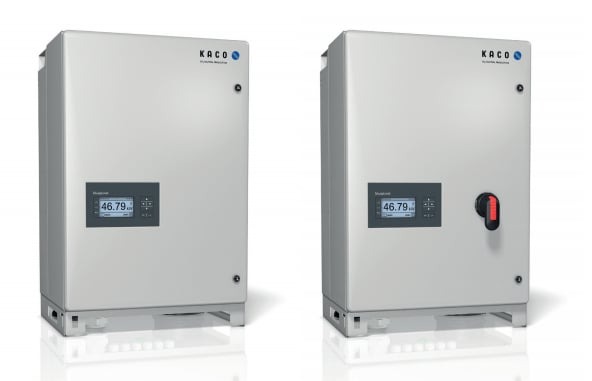

KACO undefined 29.0 TL3 LV

KACO • Blueplanet 29.0 TL3 LV

29.0 TL3 LV

Region:Germany
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
43.5kW
Nominal AC Power
97.3%
Max Efficiency
500 x 760
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The KACO 29.0 TL3 LV is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 43.5 kW commercial or industrial solar array
Use three-phase grid connection
Have panels with uniform orientation and tilt
Prioritize high efficiency performance
Focus on grid-tied operation without battery storage
Install in hot climate regions

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power43.5 kW
Max Efficiency97.3 %
Euro Efficiency96.9 %
Max AC Current229.5 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)1.6 %

DC Input Data

MPP Voltage Range360~900 V
Max DC Voltage1050 V
Rated DC Voltage410 V
Min DC Voltage to Start460 V
Max DC Current85 A
Number of MPP Trackers1
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)500 x 760 x 425 mm
Weight70.0 kg
Protection ClassIP65
Cooling MethodFan
DisplayLED
InterfaceRS 485, Ethernet, USB

Operating Conditions

Operating Temperature-20 ~ +60 ℃
Humidity0-100 %
Frequency42-68 Hz
Max Altitude3000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the KACO 29.0 TL3 LV handle?

The KACO 29.0 TL3 LV has a nominal AC output of 43.5kW with a maximum efficiency of 97.3%. It is typically paired with a solar array of 52–57kW DC for optimal energy harvest.

Is the KACO 29.0 TL3 LV a hybrid inverter?

The KACO 29.0 TL3 LV is a on-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the KACO 29.0 TL3 LV have WiFi monitoring?

Most KACO inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the KACO 29.0 TL3 LV have?

This inverter features 1 independent MPPT tracker with a maximum DC input voltage of 1050V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the KACO 29.0 TL3 LV a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
