Hybrid
Luxpower undefined GEN-LB-US 16K

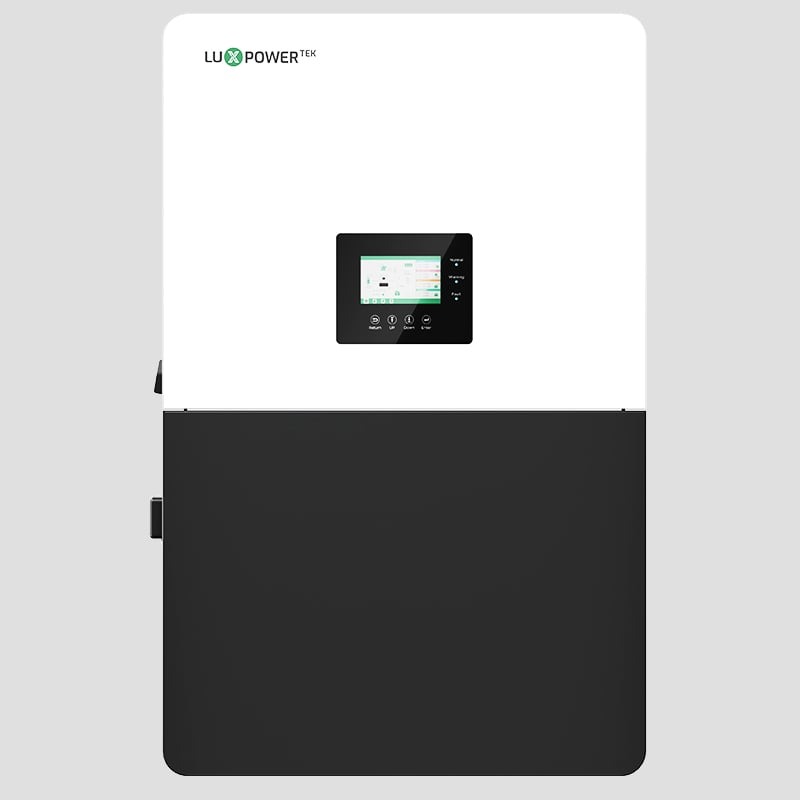

View 1

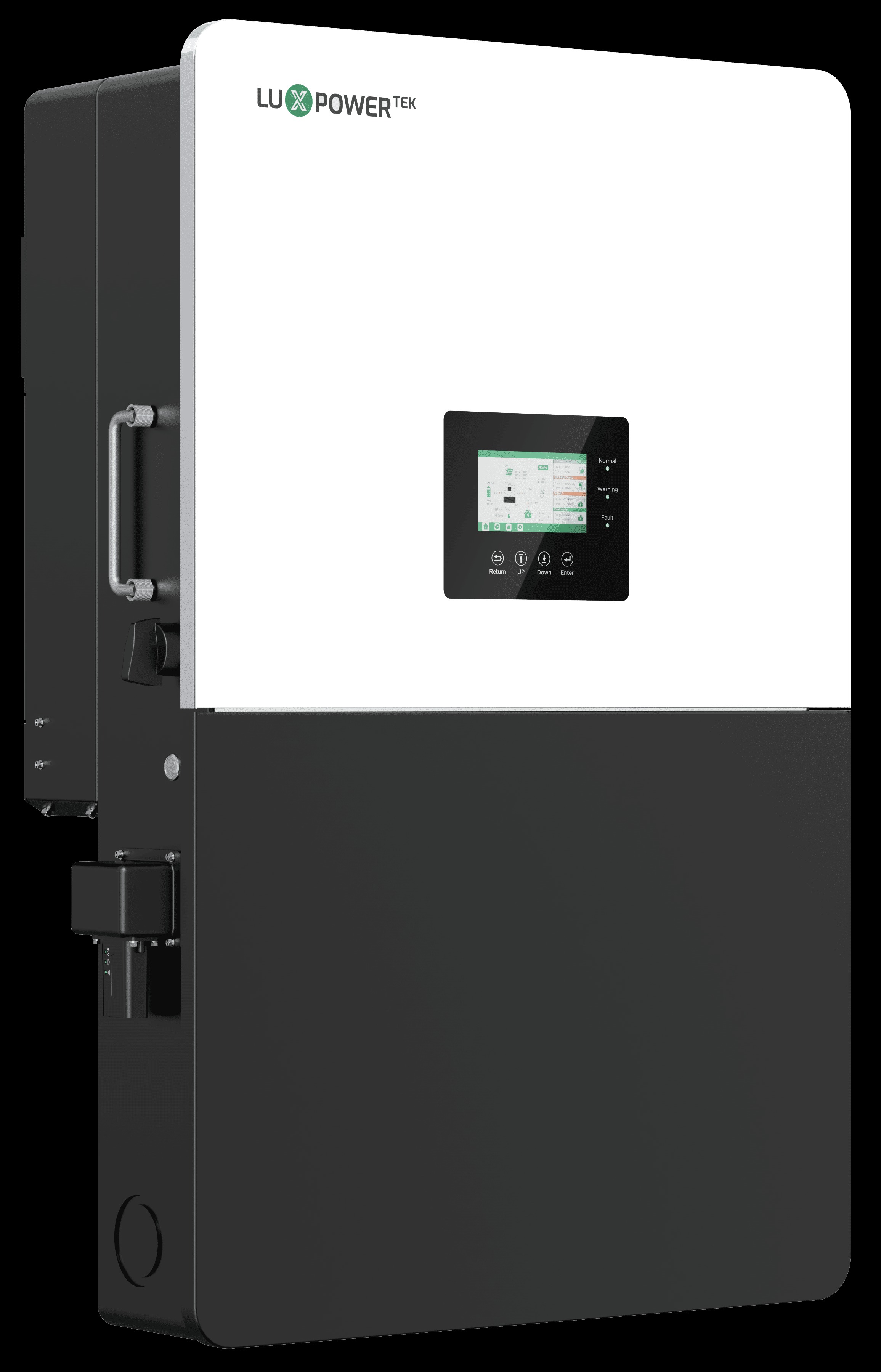

View 2

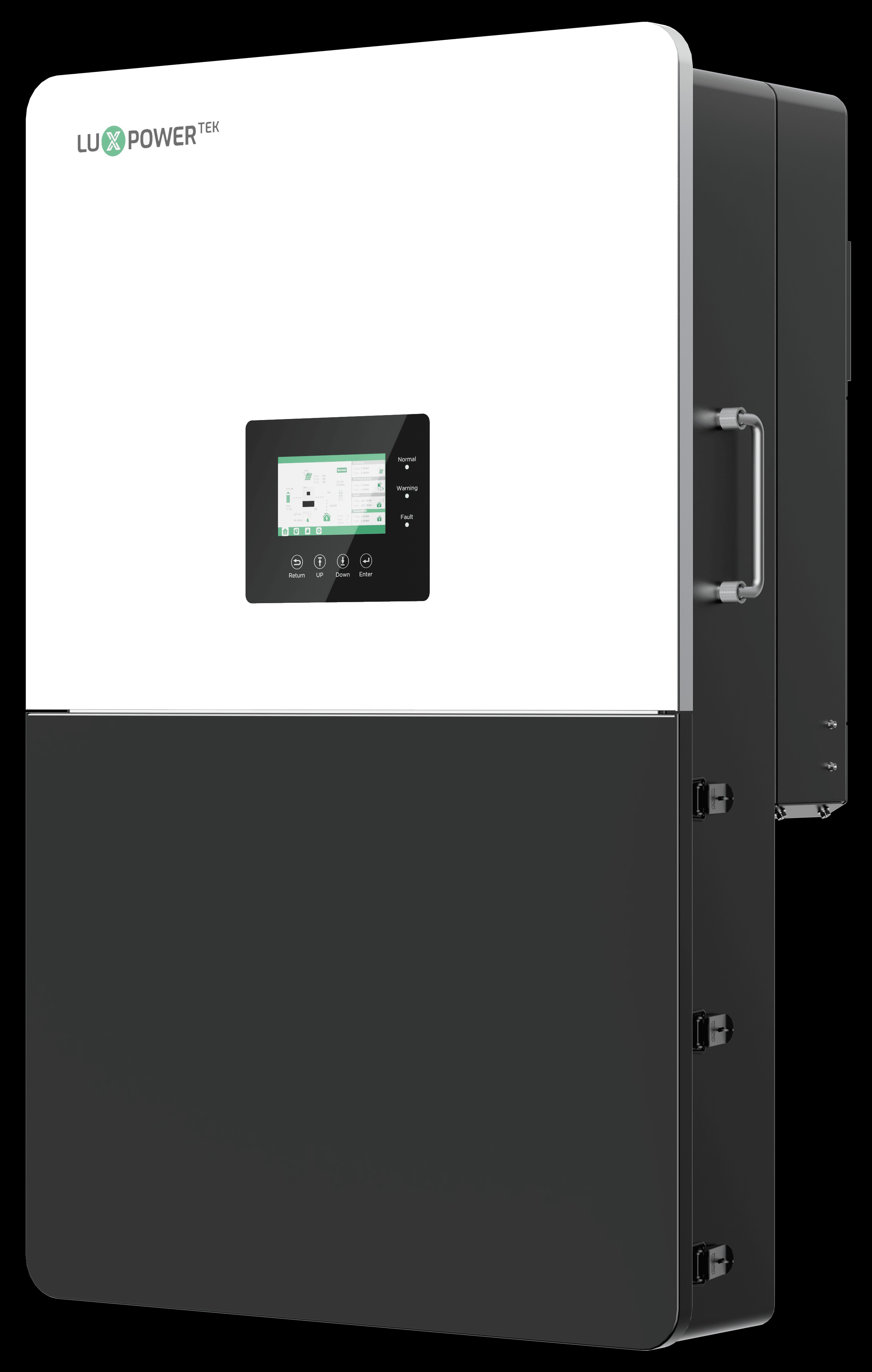

View 3

Luxpower • GEN-LB-US 16K

GEN-LB-US 16K

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
12kW
Nominal AC Power
97.5%
Max Efficiency
893 x 566
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Luxpower GEN-LB-US 16K is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 12.0 kW residential or small commercial system
Need 3 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power12 kW
Max Efficiency97.5 %
Euro Efficiency0 %
Max AC Current0 A
Rated AC Current0 A
Number of Feed-in Phases0
THD (Total Harmonic Distortion)0.99 %

DC Input Data

MPP Voltage Range120~440 V
Max DC Voltage550 V
Rated DC Voltage360 V
Min DC Voltage to Start140 V
Max DC Current0 A
Number of MPP Trackers3
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)893 x 566 x 285 mm
Weight57.0 kg
Protection ClassIP66, NEMA 4X
Cooling MethodFan
InterfaceRS 485, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50, 60 Hz
Max Altitude2000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Luxpower GEN-LB-US 16K handle?

The Luxpower GEN-LB-US 16K has a nominal AC output of 12kW with a maximum efficiency of 97.5%. It is typically paired with a solar array of 14–16kW DC for optimal energy harvest.

Is the Luxpower GEN-LB-US 16K a hybrid inverter?

Yes, the Luxpower GEN-LB-US 16K is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Luxpower GEN-LB-US 16K have WiFi monitoring?

Most Luxpower inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Luxpower GEN-LB-US 16K have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 550V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.
