Hybrid
Luxpower undefined LXP 3600 ACS

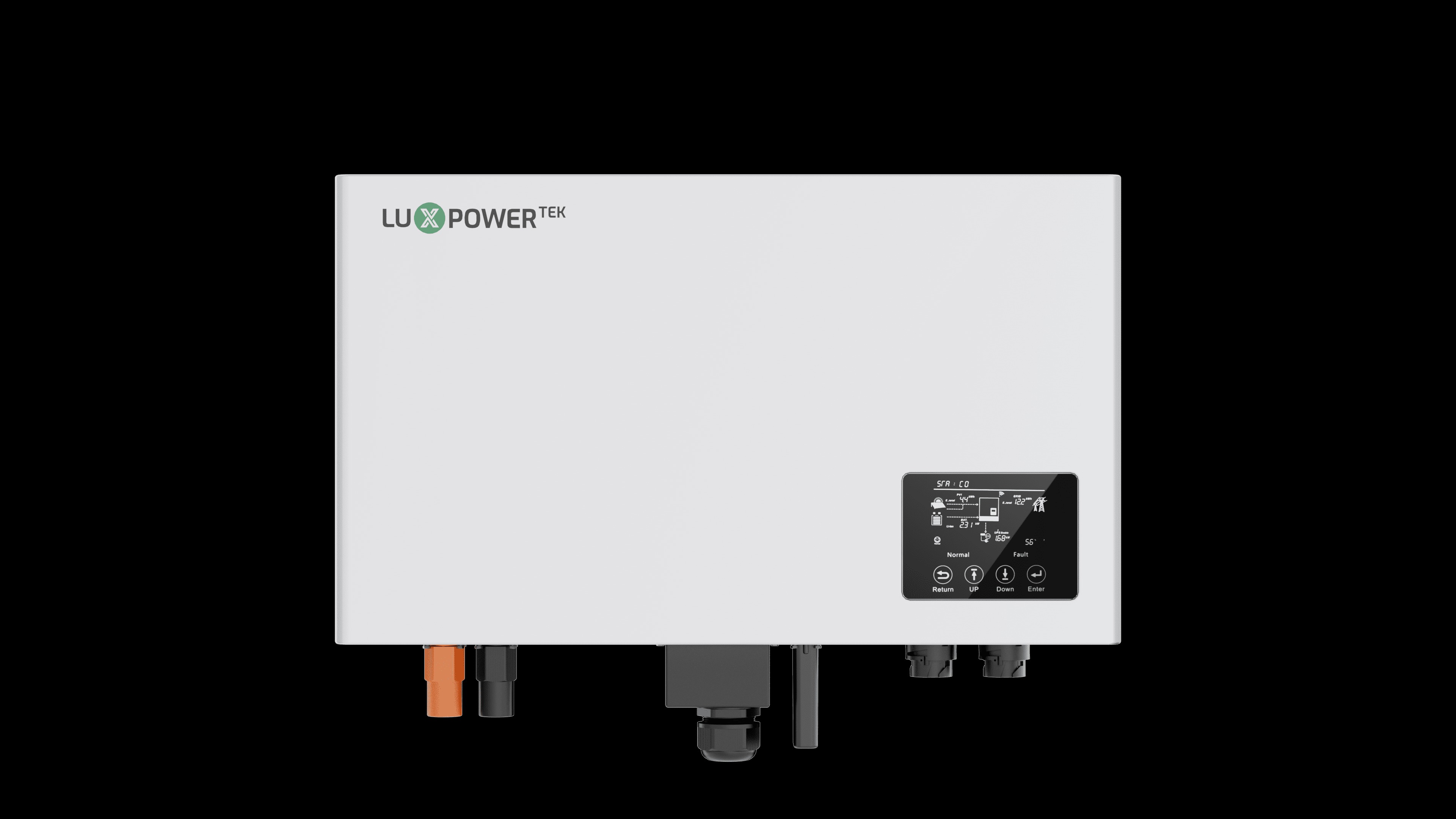

View 1

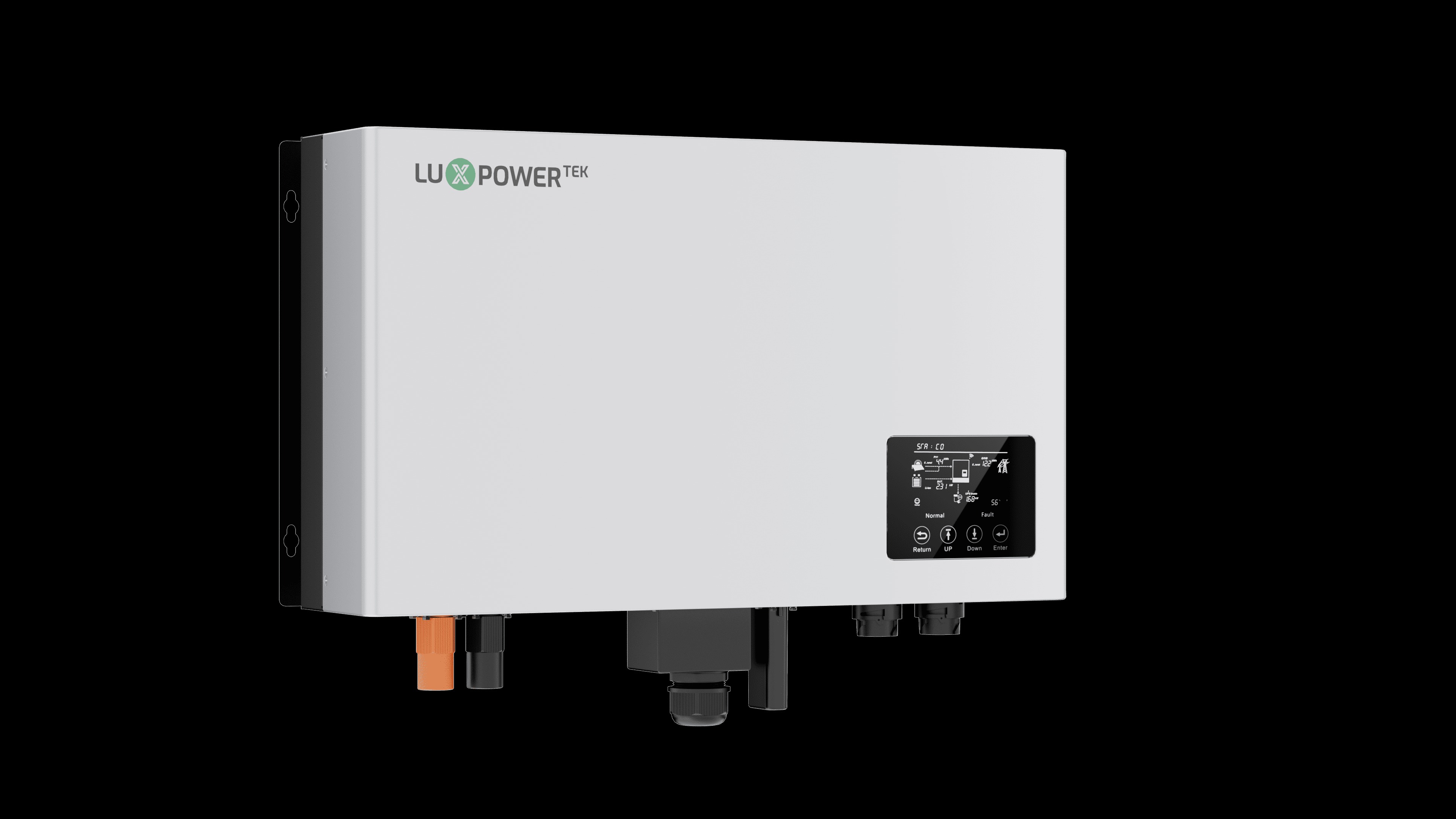

View 2

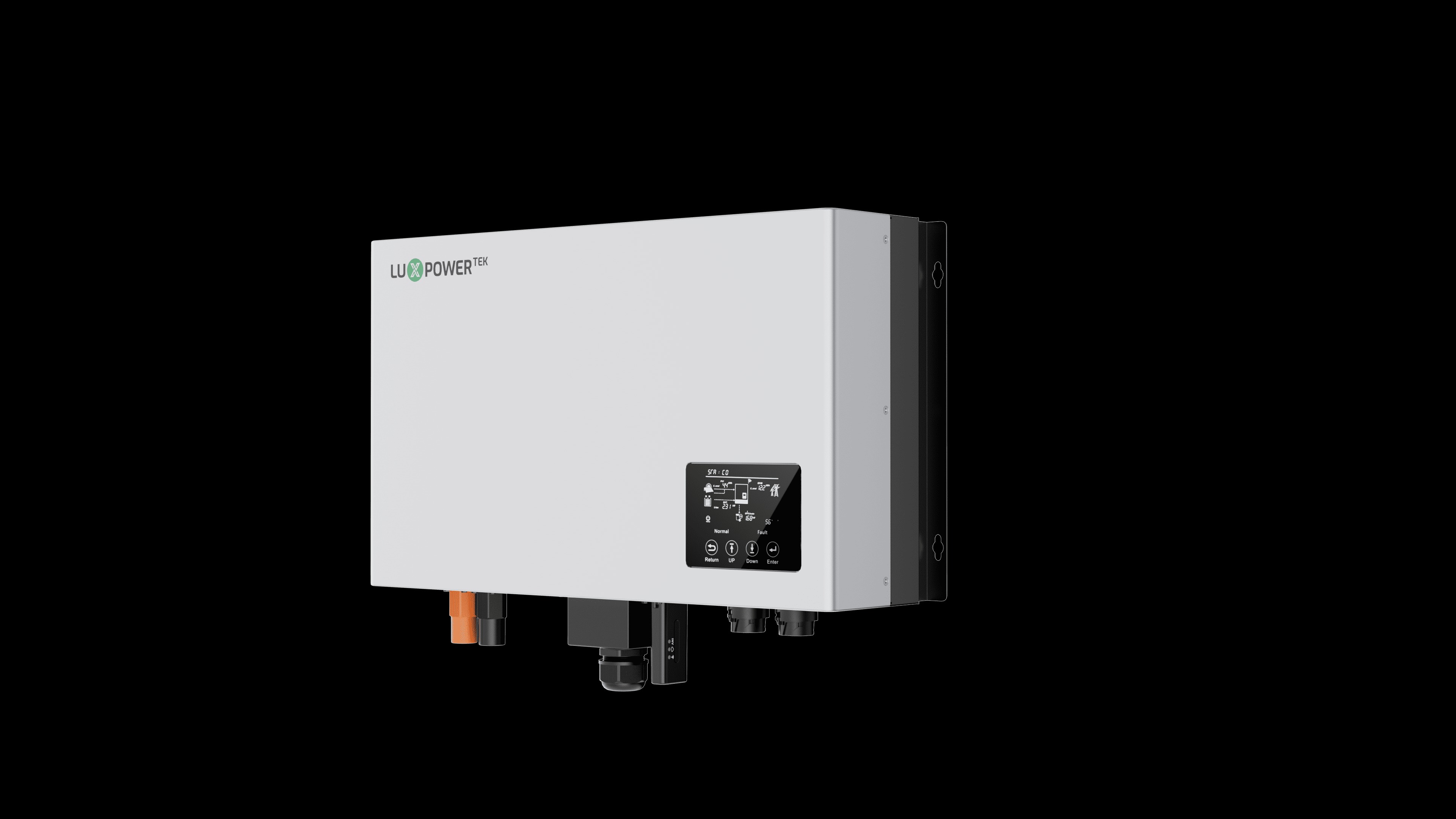

View 3

Luxpower • LXP 3600 ACS

LXP 3600 ACS

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
3.6kW
Nominal AC Power
97.3%
Max Efficiency
440 x 650
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Luxpower LXP 3600 ACS is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a 3.6 kW residential PV system
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates
Prefer silent, maintenance-free operation

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power3.6 kW
Max Efficiency97.3 %
Euro Efficiency0 %
Max AC Current26 A
Rated AC Current16 A
Number of Feed-in Phases0
THD (Total Harmonic Distortion)3 %

DC Input Data

Max DC Voltage0 V
Min DC Voltage to Start0 V
Max DC Current26 A
Number of MPP Trackers0
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)440 x 650 x 220 mm
Weight15.6 kg
Protection ClassIP65, NEMA 4X
Cooling MethodNatural
DisplayLCD
InterfaceRS 485, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-95 %
Frequency50, 60 Hz
Max Altitude2000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Luxpower LXP 3600 ACS handle?

The Luxpower LXP 3600 ACS has a nominal AC output of 3.6kW with a maximum efficiency of 97.3%. It is typically paired with a solar array of 4–5kW DC for optimal energy harvest.

Is the Luxpower LXP 3600 ACS a hybrid inverter?

Yes, the Luxpower LXP 3600 ACS is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Luxpower LXP 3600 ACS have WiFi monitoring?

Most Luxpower inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.
