Hybrid

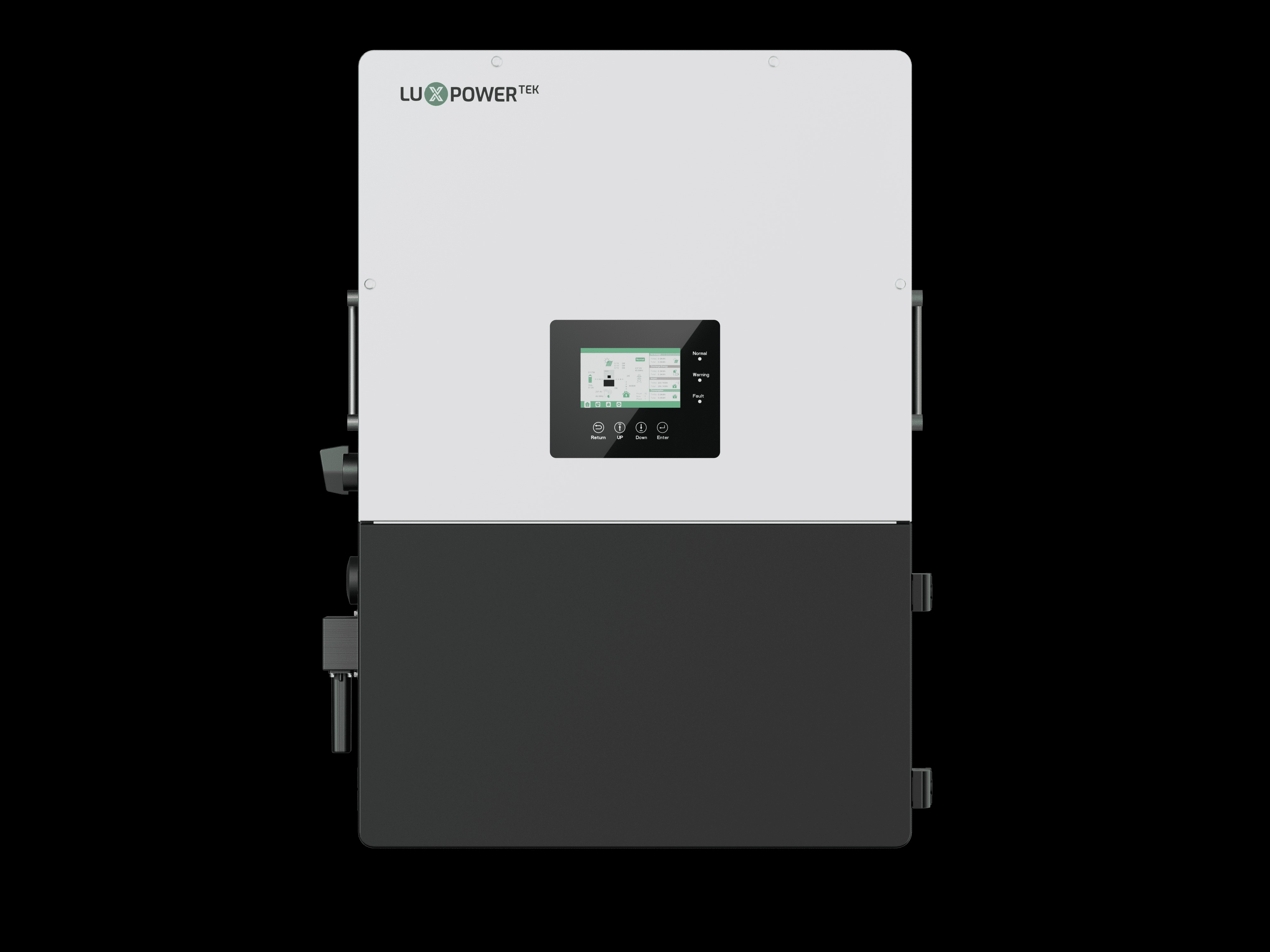

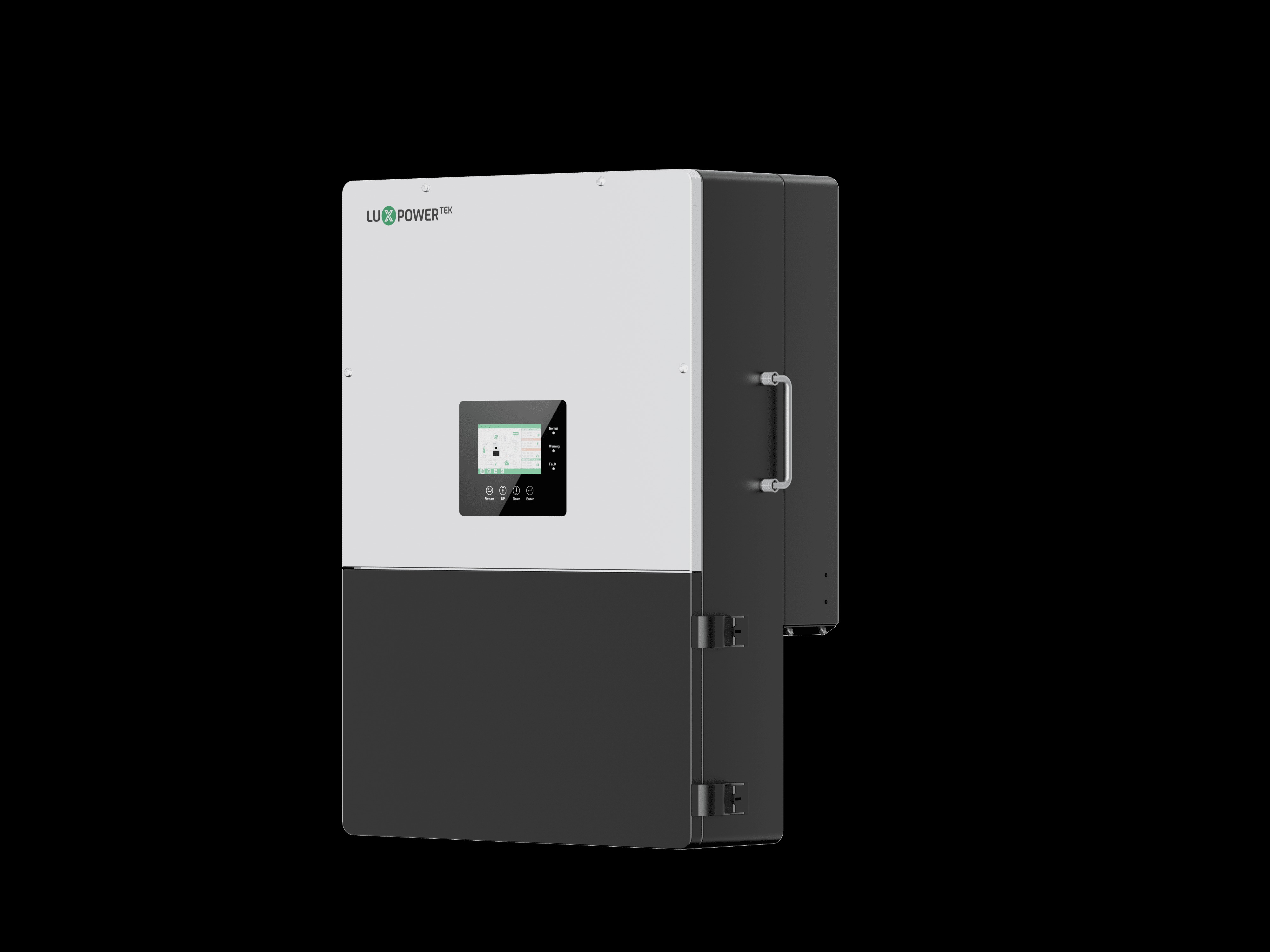

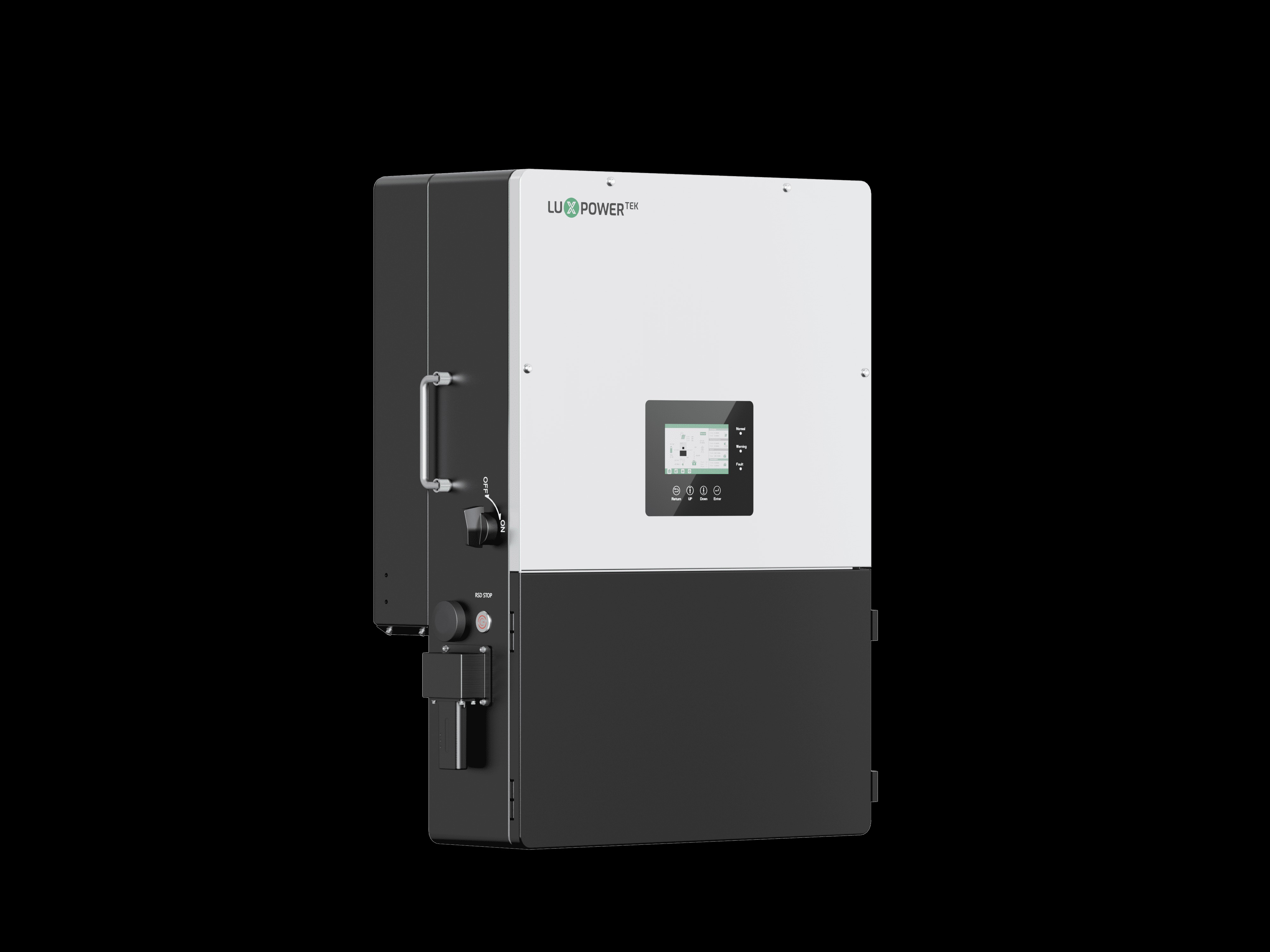

Luxpower undefined LXP-LB-US 8K
View 1
View 2
View 3

Luxpower • LXP-LB-US 5-10K

LXP-LB-US 8K

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
8kW
Nominal AC Power
97.5%
Max Efficiency
520 x 750
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Luxpower LXP-LB-US 8K is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 8.0 kW residential or small commercial system
Need 2 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power8 kW
Max Efficiency97.5 %
Euro Efficiency0 %
Max AC Current63 A
Rated AC Current0 A
Number of Feed-in Phases0
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range120~500 V
Max DC Voltage600 V
Min DC Voltage to Start140 V
Max DC Current0 A
Number of MPP Trackers2
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)520 x 750 x 285 mm
Weight50.0 kg
Protection ClassIP65, NEMA 4X
Cooling MethodFan
InterfaceRS 485, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency60 Hz
Max Altitude2000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Luxpower LXP-LB-US 8K handle?

The Luxpower LXP-LB-US 8K has a nominal AC output of 8kW with a maximum efficiency of 97.5%. It is typically paired with a solar array of 10–10kW DC for optimal energy harvest.

Is the Luxpower LXP-LB-US 8K a hybrid inverter?

Yes, the Luxpower LXP-LB-US 8K is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Luxpower LXP-LB-US 8K have WiFi monitoring?

Most Luxpower inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Luxpower LXP-LB-US 8K have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 600V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.
