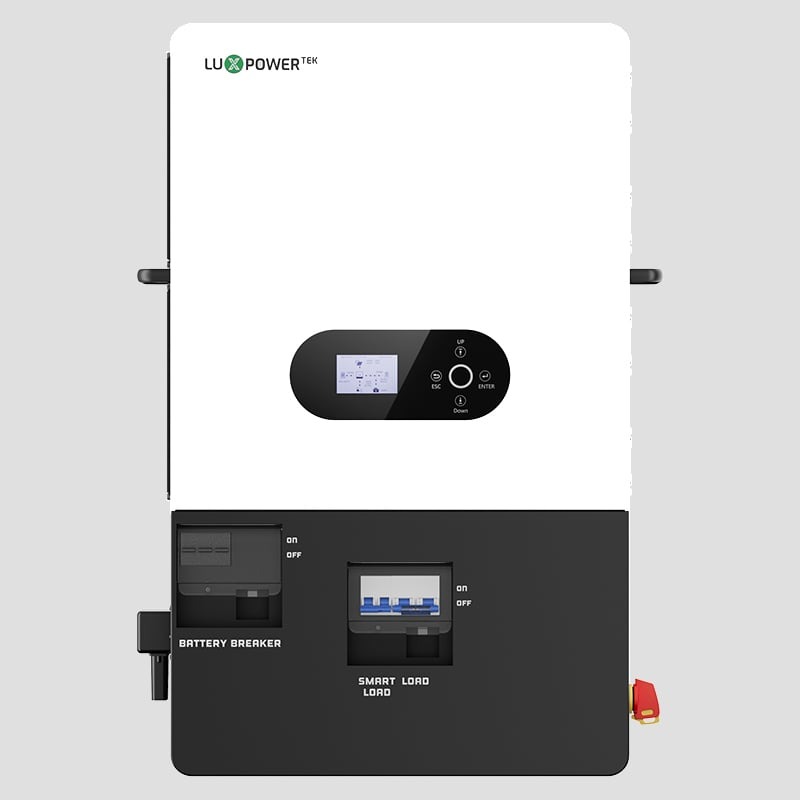

Luxpower undefined SNA US 12K

Luxpower • SNA US 12-15K

SNA US 12K

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
12kW
Nominal AC Power
93.5%
Max Efficiency
830 x 530
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Luxpower SNA US 12K is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 12.0 kW residential or small commercial system
Need 2 independent MPPT trackers for different roof orientations
Want to add battery storage now or in the future

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power12 kW
Max Efficiency93.5 %
Euro Efficiency0 %
Max AC Current0 A
Rated AC Current50 A
Number of Feed-in Phases0
THD (Total Harmonic Distortion)5 %

DC Input Data

MPP Voltage Range120~440 V
Max DC Voltage480 V
Rated DC Voltage320 V
Min DC Voltage to Start100 V
Max DC Current0 A
Number of MPP Trackers2
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)830 x 530 x 150 mm
Weight47.5 kg
Protection ClassIP20
Cooling MethodFan
DisplayLCD
InterfaceRS 485, WLAN

Operating Conditions

Operating Temperature-0 ~ +45 ℃
Humidity5-95 %
Frequency50, 60 Hz
Max Altitude2000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Luxpower SNA US 12K handle?

The Luxpower SNA US 12K has a nominal AC output of 12kW with a maximum efficiency of 93.5%. It is typically paired with a solar array of 14–16kW DC for optimal energy harvest.

Is the Luxpower SNA US 12K a hybrid inverter?

Yes, the Luxpower SNA US 12K is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Luxpower SNA US 12K have WiFi monitoring?

Most Luxpower inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Luxpower SNA US 12K have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 480V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.
