Hybrid

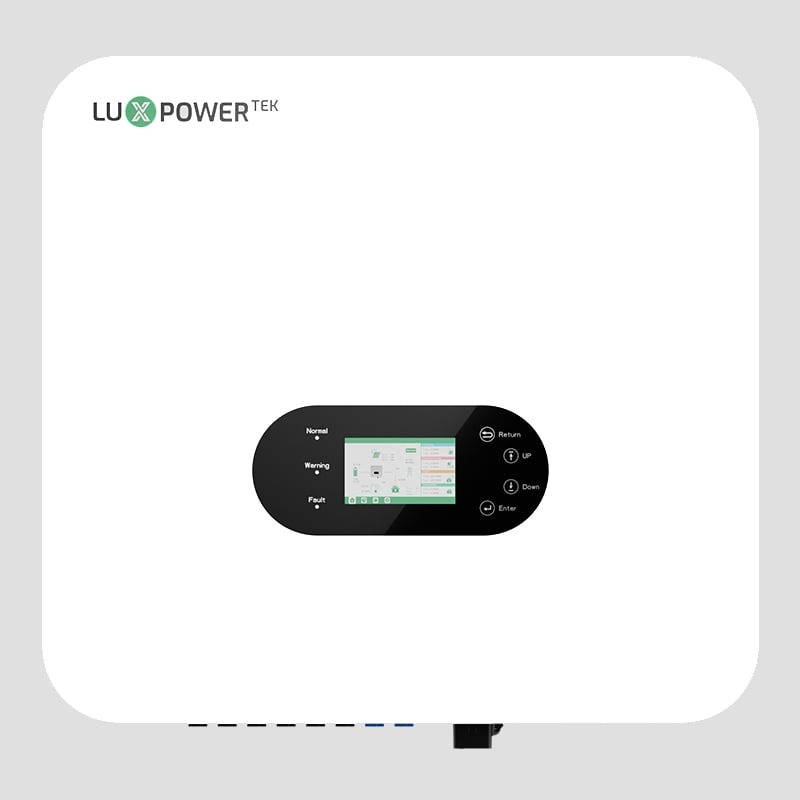

Luxpower undefined TriP 15K

Luxpower • TriP 6-30K

TriP 15K

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
15kW
Nominal AC Power
97.4%
Max Efficiency
563 x 605
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Luxpower TriP 15K is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 15.0 kW residential or small commercial system
Use three-phase grid connection
Need 3 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power15 kW
Max Efficiency97.4 %
Euro Efficiency0 %
Max AC Current0 A
Rated AC Current22.8 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range200~900 V
Max DC Voltage1000 V
Rated DC Voltage690 V
Min DC Voltage to Start100 V
Max DC Current0 A
Number of MPP Trackers3
DC Inputs0

Mechanical & Environmental Data

Dimensions (W x H x D)563 x 605 x 257 mm
Weight38.0 kg
Protection ClassIP65
Cooling MethodNatural, Fan
InterfaceRS 485

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency50 Hz
Max Altitude4000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Luxpower TriP 15K handle?

The Luxpower TriP 15K has a nominal AC output of 15kW with a maximum efficiency of 97.4%. It is typically paired with a solar array of 18–20kW DC for optimal energy harvest.

Is the Luxpower TriP 15K a hybrid inverter?

Yes, the Luxpower TriP 15K is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Luxpower TriP 15K have WiFi monitoring?

Most Luxpower inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Luxpower TriP 15K have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Luxpower TriP 15K a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
