Hybrid
SMA undefined Sunny Tripower 10.0 Smart Energy
View 1
View 2

SMA • SMA Sunny Tripower Smart Energy 5.0/6.0/8.0/10.0

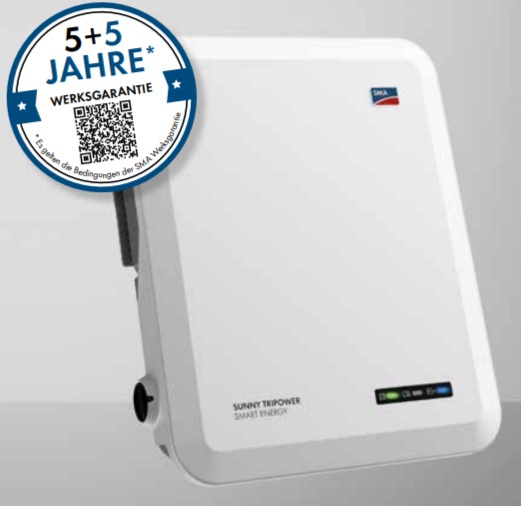

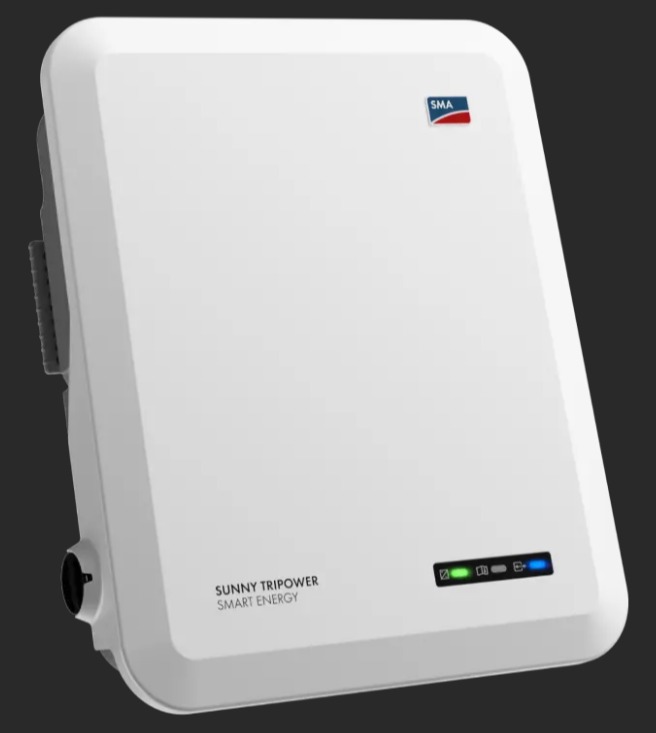

Sunny Tripower 10.0 Smart Energy

Region:Germany, South Africa
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
10kW
Nominal AC Power
98.1%
Max Efficiency
500 x 598
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The SMA Sunny Tripower 10.0 Smart Energy is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 10.0 kW residential or small commercial system
Use three-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.1% peak efficiency)
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power10 kW
Max Efficiency98.1 %
Euro Efficiency97.5 %
Max AC Current45.6 A
Rated AC Current43.5 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)0 %

DC Input Data

MPP Voltage Range280~800 V
Max DC Voltage1000 V
Rated DC Voltage600 V
Min DC Voltage to Start150 V
Max DC Current25 A
Number of MPP Trackers2
DC Inputs3

Mechanical & Environmental Data

Dimensions (W x H x D)500 x 598 x 173 mm
Weight30.0 kg
Protection ClassIP65
Cooling MethodNatural
InterfaceEthernet, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency45-55 Hz
Transformer TypeTransformerless
Power Consumption (Night)44 W

Similar Products

Product FAQ

What size solar array can the SMA Sunny Tripower 10.0 Smart Energy handle?

The SMA Sunny Tripower 10.0 Smart Energy has a nominal AC output of 10kW with a maximum efficiency of 98.1%. It is typically paired with a solar array of 12–13kW DC for optimal energy harvest.

Is the SMA Sunny Tripower 10.0 Smart Energy a hybrid inverter?

Yes, the SMA Sunny Tripower 10.0 Smart Energy is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the SMA Sunny Tripower 10.0 Smart Energy have WiFi monitoring?

Most SMA inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the SMA Sunny Tripower 10.0 Smart Energy have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the SMA Sunny Tripower 10.0 Smart Energy a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
