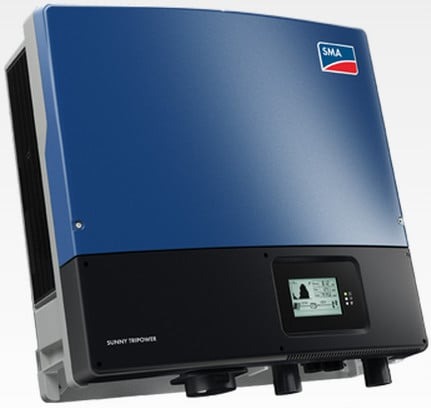

SMA undefined SUNNY TRIPOWER 25000TL-JP

SMA • SMA SUNNY TRIPOWER 25000TL-JP

SUNNY TRIPOWER 25000TL-JP

Region:Germany
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
25kW
Nominal AC Power
98.7%
Max Efficiency
661 x 682
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The SMA SUNNY TRIPOWER 25000TL-JP is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Operate a 25.0 kW commercial solar installation
Use three-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.7% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power25 kW
Max Efficiency98.7 %
Euro Efficiency98 %
Max AC Current38 A
Rated AC Current0 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range390~800 V
Max DC Voltage1000 V
Rated DC Voltage625 V
Min DC Voltage to Start150 V
Max DC Current33 A
Number of MPP Trackers2
DC Inputs6

Mechanical & Environmental Data

Dimensions (W x H x D)661 x 682 x 264 mm
Weight61.0 kg
Protection ClassIP65
Cooling MethodNatural
DisplayLCD

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency44-65 Hz
Transformer TypeTransformerless
Power Consumption (Night)1 W

Similar Products

Product FAQ

What size solar array can the SMA SUNNY TRIPOWER 25000TL-JP handle?

The SMA SUNNY TRIPOWER 25000TL-JP has a nominal AC output of 25kW with a maximum efficiency of 98.7%. It is typically paired with a solar array of 30–33kW DC for optimal energy harvest.

Is the SMA SUNNY TRIPOWER 25000TL-JP a hybrid inverter?

The SMA SUNNY TRIPOWER 25000TL-JP is a on-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the SMA SUNNY TRIPOWER 25000TL-JP have WiFi monitoring?

Most SMA inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the SMA SUNNY TRIPOWER 25000TL-JP have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 1000V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the SMA SUNNY TRIPOWER 25000TL-JP a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
