On-Grid
SMA undefined Sunny Tripower CORE2
View 1
View 2

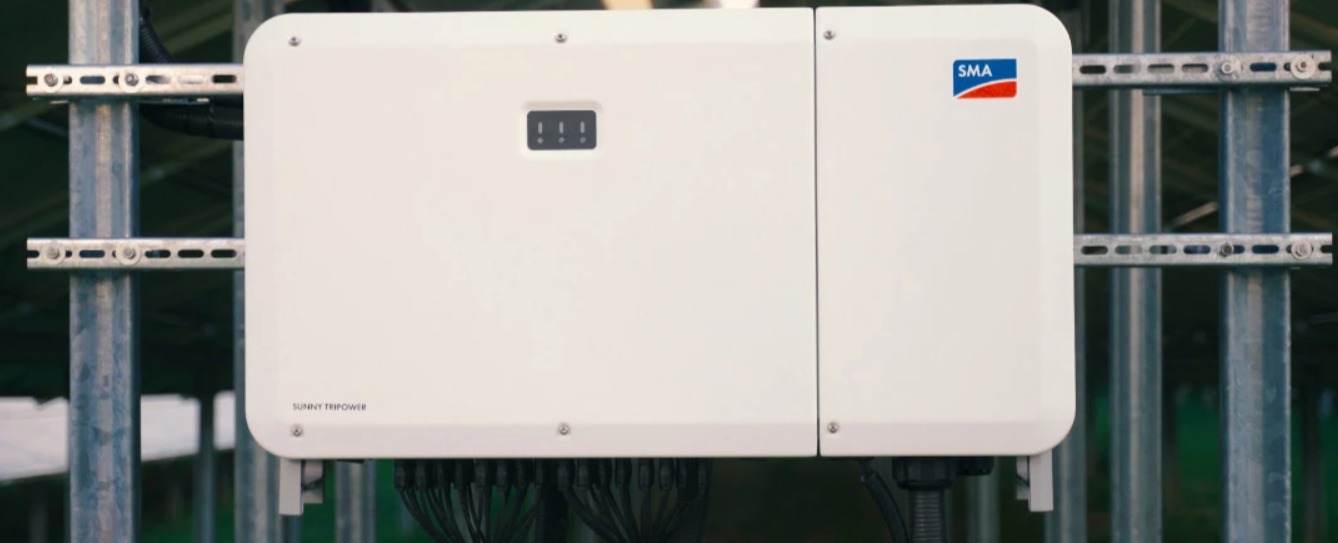

SMA • SMA Sunny Tripower Core2 STP 110-60

Sunny Tripower CORE2

Region:Germany, Italy, UAE, South Africa
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
110kW
Nominal AC Power
98.6%
Max Efficiency
1117 x 682
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The SMA Sunny Tripower CORE2 is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Manage a large 110.0 kW commercial or industrial solar array
Use three-phase grid connection
Need 12 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.6% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power110 kW
Max Efficiency98.6 %
Euro Efficiency98.4 %
Max AC Current158.8 A
Rated AC Current158.8 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range200~1000 V
Max DC Voltage1100 V
Rated DC Voltage585 V
Min DC Voltage to Start0 V
Max DC Current0 A
Number of MPP Trackers12
DC Inputs24

Mechanical & Environmental Data

Dimensions (W x H x D)1117 x 682 x 363 mm
Weight93.5 kg
Protection ClassIP66
Cooling MethodFan
DisplayLED
InterfaceEthernet

Operating Conditions

Operating Temperature-30 ~ +60 ℃
Humidity0-100 %
Frequency45-65 Hz
Transformer TypeTransformerless
Power Consumption (Night)5 W

Similar Products

Product FAQ

What size solar array can the SMA Sunny Tripower CORE2 handle?

The SMA Sunny Tripower CORE2 has a nominal AC output of 110kW with a maximum efficiency of 98.6%. It is typically paired with a solar array of 132–143kW DC for optimal energy harvest.

Is the SMA Sunny Tripower CORE2 a hybrid inverter?

The SMA Sunny Tripower CORE2 is a on-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the SMA Sunny Tripower CORE2 have WiFi monitoring?

Most SMA inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the SMA Sunny Tripower CORE2 have?

This inverter features 12 independent MPPT trackers with a maximum DC input voltage of 1100V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the SMA Sunny Tripower CORE2 a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
