Hybrid

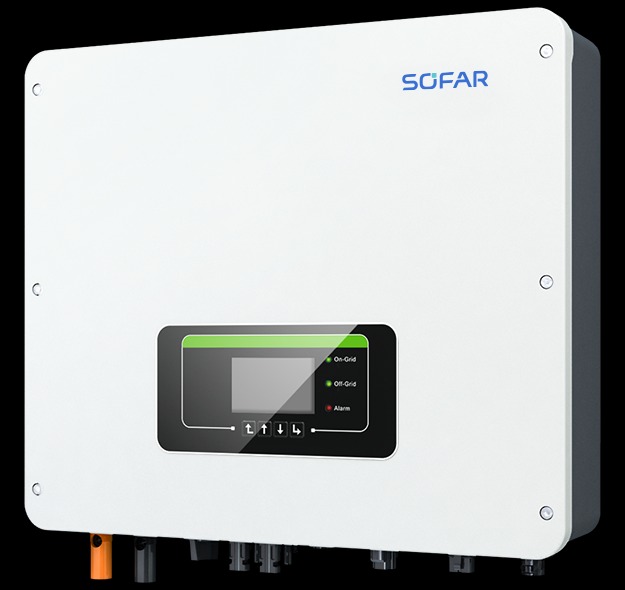

Sofar Solar undefined HYD 5000-EP

Sofar Solar • Sofar Solar HYD 3000~6000-EP Single-Phase Energy Storage In...

HYD 5000-EP

Region:Belgium
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
5kW
Nominal AC Power
97.8%
Max Efficiency
503 x 482
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Sofar Solar HYD 5000-EP is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a 5.0 kW residential PV system
Use single-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power5 kW
Max Efficiency97.8 %
Euro Efficiency97.3 %
Max AC Current22.7 A
Rated AC Current21.7 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range90~550 V
Max DC Voltage600 V
Rated DC Voltage360 V
Min DC Voltage to Start100 V
Max DC Current26 A
Number of MPP Trackers2
DC Inputs2

Mechanical & Environmental Data

Dimensions (W x H x D)503 x 482 x 183 mm
Weight21.5 kg
Protection ClassIP65
Cooling MethodNatural
DisplayLCD
InterfaceRS 485, Ethernet, Bluetooth, WLAN

Operating Conditions

Operating Temperature-30 ~ +60 ℃
Humidity5-95 %
Frequency50, 60 Hz
Max Altitude4000 m
Power Consumption (Night)10 W

Similar Products

Product FAQ

What size solar array can the Sofar Solar HYD 5000-EP handle?

The Sofar Solar HYD 5000-EP has a nominal AC output of 5kW with a maximum efficiency of 97.8%. It is typically paired with a solar array of 6–7kW DC for optimal energy harvest.

Is the Sofar Solar HYD 5000-EP a hybrid inverter?

Yes, the Sofar Solar HYD 5000-EP is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Sofar Solar HYD 5000-EP have WiFi monitoring?

Most Sofar Solar inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Sofar Solar HYD 5000-EP have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 600V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Sofar Solar HYD 5000-EP a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
