On-Grid

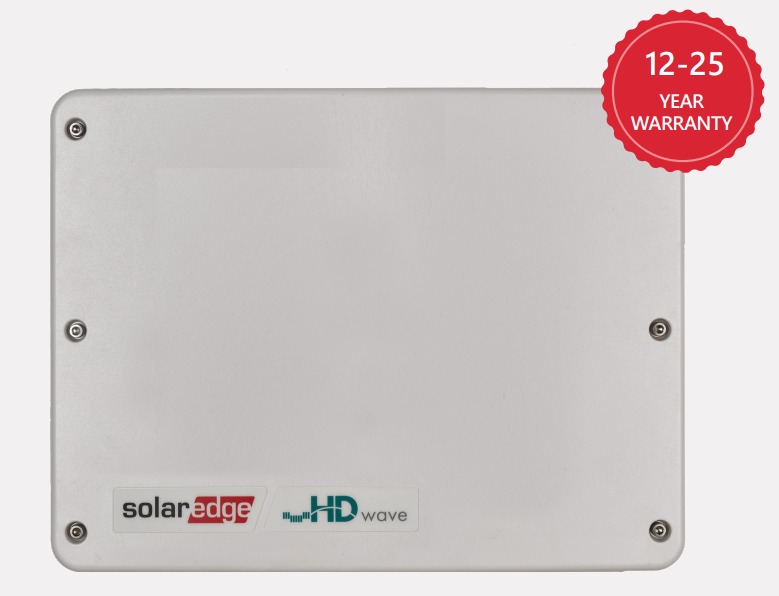

SolarEdge Technologies undefined SE3680H

SolarEdge Technologies • SolarEdge Technologies SE3680H-5000H StorEdge AC Coupled Single Phase ...

SE3680H

Region:South Africa
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
7.36kW
Nominal AC Power
99.2%
Max Efficiency
370 x 280
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The SolarEdge Technologies SE3680H is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 7.4 kW residential or small commercial system
Use single-phase grid connection
Want maximum energy harvest (99.2% peak efficiency)
Focus on grid-tied operation without battery storage
Operate in extremely cold climates
Want remote monitoring and control capabilities

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power7.36 kW
Max Efficiency99.2 %
Euro Efficiency98.8 %
Max AC Current16 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

Max DC Voltage480 V
Min DC Voltage to Start0 V
Max DC Current10.5 A
Number of MPP Trackers0
DC Inputs0
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)370 x 280 x 142 mm
Weight7.8 kg
Protection ClassIP65
Cooling MethodNatural
InterfaceRS 485, Ethernet, WLAN

Operating Conditions

Operating Temperature-40 ~ +60 ℃
Frequency50, 60 Hz
Power Consumption (Night)2.5 W

Similar Products

Product FAQ

What size solar array can the SolarEdge Technologies SE3680H handle?

The SolarEdge Technologies SE3680H has a nominal AC output of 7.36kW with a maximum efficiency of 99.2%. It is typically paired with a solar array of 9–10kW DC for optimal energy harvest.

Is the SolarEdge Technologies SE3680H a hybrid inverter?

The SolarEdge Technologies SE3680H is a on-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the SolarEdge Technologies SE3680H have WiFi monitoring?

Most SolarEdge Technologies inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

Is the SolarEdge Technologies SE3680H a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
