Micro-inverter

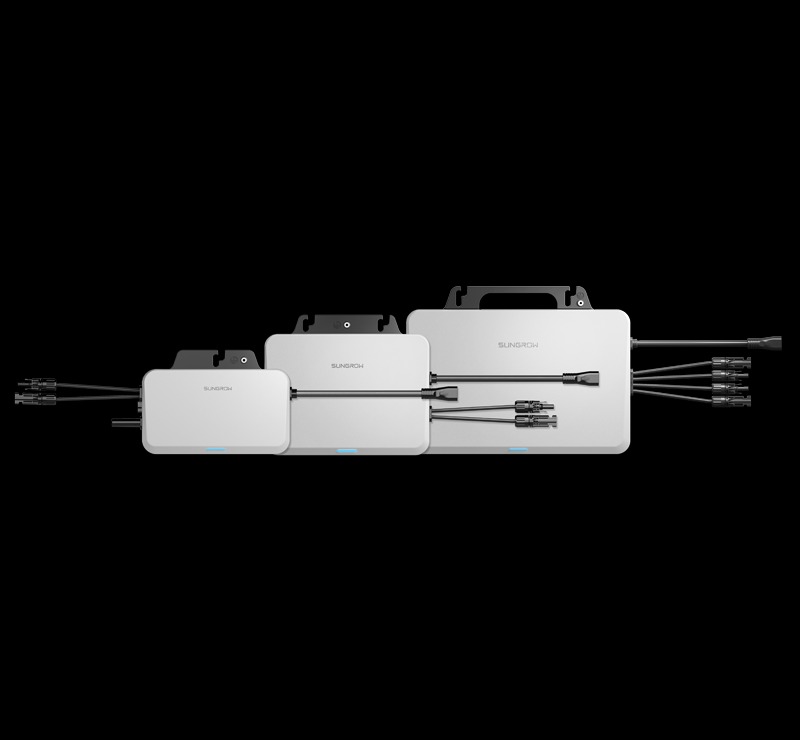

Sungrow undefined S2000S-L

Sungrow • S450S-L/S1000S-L/S2000S-L

S2000S-L

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
0kW
Nominal AC Power
96.2%
Max Efficiency
238 x 168
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Sungrow S2000S-L is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a small residential system (0.0 kW or less)
Use single-phase grid connection
Need 4 independent MPPT trackers for different roof orientations
Focus on grid-tied operation without battery storage
Operate in extremely cold climates
Prefer silent, maintenance-free operation

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power0 kW
Max Efficiency96.2 %
Euro Efficiency95.4 %
Max AC Current9.1 A
Rated AC Current8.7 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)5 %

DC Input Data

MPP Voltage Range16~60 V
Max DC Voltage60 V
Min DC Voltage to Start22 V
Max DC Current64 A
Number of MPP Trackers4
DC Inputs0
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)238 x 168 x 42 mm
Weight2.5 kg
Protection ClassIP67
Cooling MethodNatural
DisplayLED
InterfaceWLAN

Operating Conditions

Operating Temperature-40 ~ +60 ℃
Humidity0-100 %
Frequency45-65 Hz
Max Altitude2000 m
Transformer TypeHigh Frequency-Transformer
Power Consumption (Night)0.05 W

Similar Products

Product FAQ

What size solar array can the Sungrow S2000S-L handle?

The Sungrow S2000S-L has a nominal AC output of 0kW with a maximum efficiency of 96.2%. It is typically paired with a solar array of 0–0kW DC for optimal energy harvest.

Is the Sungrow S2000S-L a hybrid inverter?

The Sungrow S2000S-L is a micro-inverter inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Sungrow S2000S-L have WiFi monitoring?

Most Sungrow inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Sungrow S2000S-L have?

This inverter features 4 independent MPPT trackers with a maximum DC input voltage of 60V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Sungrow S2000S-L a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
