On-Grid

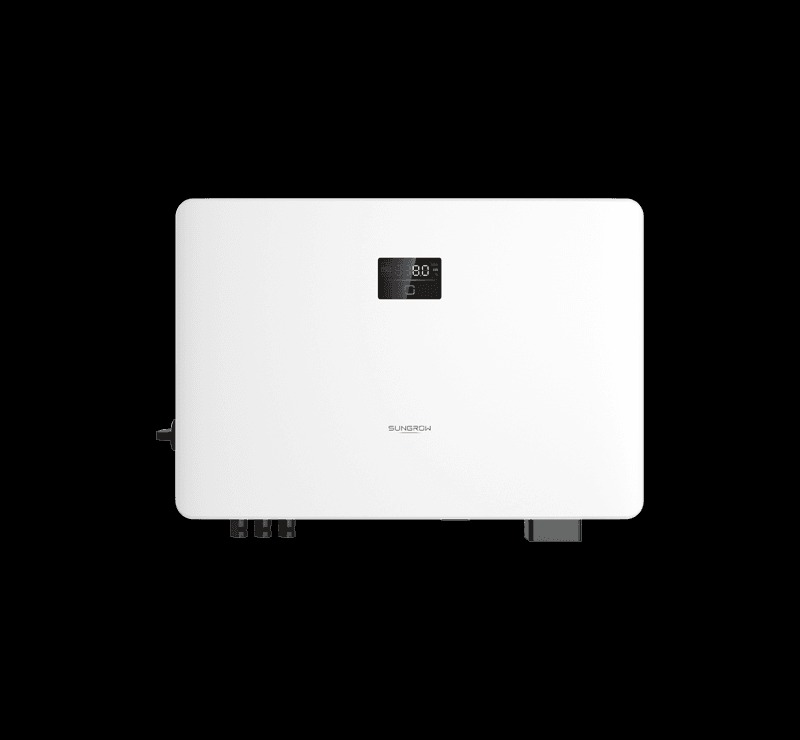

Sungrow undefined SG10RS-L

Sungrow • SG9.0/10RS-L (India)

SG10RS-L

Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
15kW
Nominal AC Power
97.8%
Max Efficiency
525 x 365
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Sungrow SG10RS-L is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 15.0 kW residential or small commercial system
Use single-phase grid connection
Need 3 independent MPPT trackers for different roof orientations
Prioritize high efficiency performance
Focus on grid-tied operation without battery storage
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power15 kW
Max Efficiency97.8 %
Euro Efficiency97.4 %
Max AC Current45.5 A
Rated AC Current0 A
Number of Feed-in Phases1
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range40~560 V
Max DC Voltage600 V
Rated DC Voltage360 V
Min DC Voltage to Start50 V
Max DC Current48 A
Number of MPP Trackers3
DC Inputs3
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)525 x 365 x 170 mm
Weight18.0 kg
Protection ClassIP65
Cooling MethodNatural
DisplayLED
InterfaceWLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency45-65 Hz
Max Altitude4000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Sungrow SG10RS-L handle?

The Sungrow SG10RS-L has a nominal AC output of 15kW with a maximum efficiency of 97.8%. It is typically paired with a solar array of 18–20kW DC for optimal energy harvest.

Is the Sungrow SG10RS-L a hybrid inverter?

The Sungrow SG10RS-L is a on-grid inverter. To add battery storage, you would need a separate AC-coupled battery inverter or upgrade to a hybrid model.

Does the Sungrow SG10RS-L have WiFi monitoring?

Most Sungrow inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Sungrow SG10RS-L have?

This inverter features 3 independent MPPT trackers with a maximum DC input voltage of 600V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Sungrow SG10RS-L a single-phase inverter?

Yes, this is a single-phase inverter. Single-phase inverters are the most common choice for standard residential grid connections.
