Hybrid

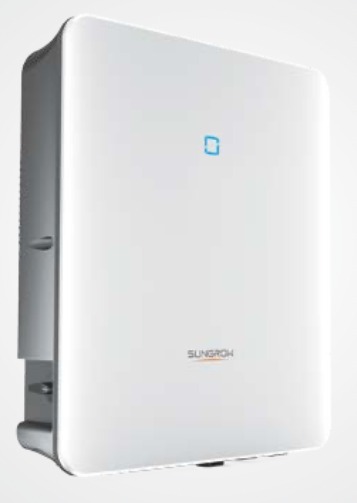

Sungrow undefined SH10RT

Sungrow • Sungrow SH5.0/6.0/8.0/10RT (Version 1.21)

SH10RT

Region:Germany, Italy, Czech Republic
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
13.3kW
Nominal AC Power
98.4%
Max Efficiency
480 x 540
Dimensions (mm)
Size Your System Find Installer

Ideal Use Case

The Sungrow SH10RT is tailored for specific solar energy needs. This inverter is an excellent choice if you:

Have a medium-sized 13.3 kW residential or small commercial system
Use three-phase grid connection
Need 2 independent MPPT trackers for different roof orientations
Want maximum energy harvest (98.4% peak efficiency)
Want to add battery storage now or in the future
Operate in extremely cold climates

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

AC Output Data

Nominal AC Power13.3 kW
Max Efficiency98.4 %
Euro Efficiency97.9 %
Max AC Current17 A
Rated AC Current14.5 A
Number of Feed-in Phases3
THD (Total Harmonic Distortion)3 %

DC Input Data

MPP Voltage Range200~1000 V
Max DC Voltage1100 V
Min DC Voltage to Start250 V
Max DC Current37.5 A
Number of MPP Trackers2
DC Inputs0
ConnectorsMC4

Mechanical & Environmental Data

Dimensions (W x H x D)480 x 540 x 170 mm
Weight25.0 kg
Cooling MethodNatural
InterfaceRS 485, Ethernet, WLAN

Operating Conditions

Operating Temperature-25 ~ +60 ℃
Humidity0-100 %
Frequency55-65 Hz
Max Altitude4000 m
Transformer TypeTransformerless
Power Consumption (Night)0 W

Similar Products

Product FAQ

What size solar array can the Sungrow SH10RT handle?

The Sungrow SH10RT has a nominal AC output of 13.3kW with a maximum efficiency of 98.4%. It is typically paired with a solar array of 16–17kW DC for optimal energy harvest.

Is the Sungrow SH10RT a hybrid inverter?

Yes, the Sungrow SH10RT is a hybrid inverter that supports direct battery connection for energy storage and backup power.

Does the Sungrow SH10RT have WiFi monitoring?

Most Sungrow inverters come with or support optional WiFi/Ethernet dongles. This allows you to track your solar production and battery status via a mobile app or web portal in real-time.

How many MPPT trackers does the Sungrow SH10RT have?

This inverter features 2 independent MPPT trackers with a maximum DC input voltage of 1100V. Multiple trackers allow panels on different roof faces or orientations to operate independently for maximum yield.

Is the Sungrow SH10RT a three-phase inverter?

Yes, this is a three-phase inverter. Three-phase inverters are ideal for larger homes, commercial systems, or regions with three-phase grid connections.
