MonocrystallineN-type

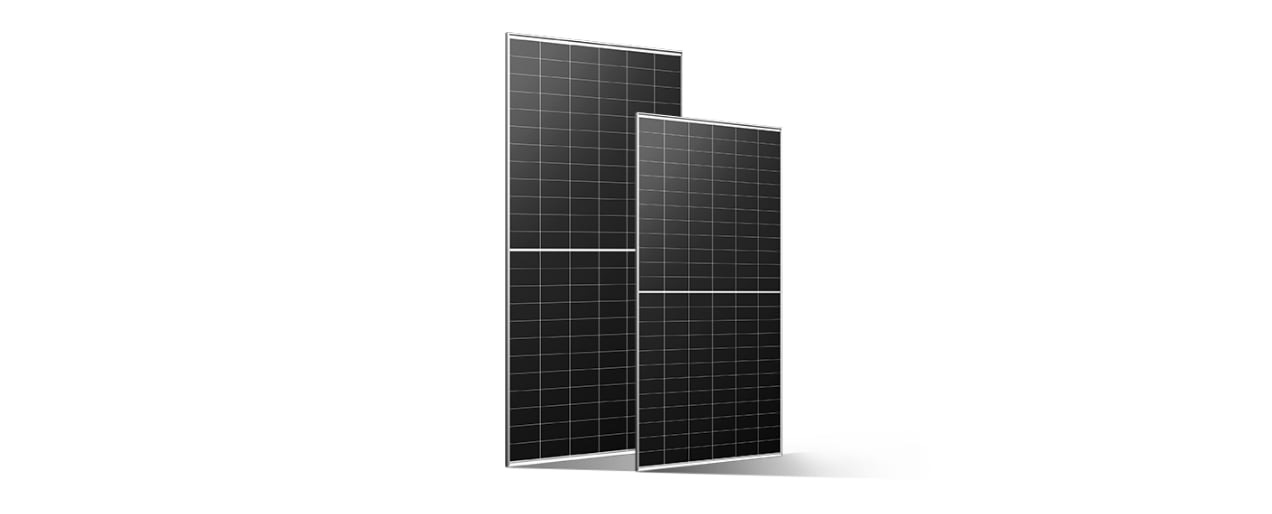

Aiko Solar undefined AIKO-A605-MAH72Mw

Aiko Solar • aiko n type abc white hole series aiko a mah72mw 600...

AIKO-A605-MAH72Mw605W

N-type
Region:Spain
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
605W
Power Output
23.4%
Efficiency
2278 x 1134
Dimensions (mm)
15 Yrs
Product Warranty
Find Installer

Key Features

  • Premium Appearance
  • Higher Power Output
  • Optimized Balance of System (BOS)

Aiko Solar AIKO-A605-MAH72Mw Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
17 Panels
Estimated Roof Area
474 sq.ft. (44 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)605 W
Module Efficiency23.4 %
Voltage at Pmax (Vmp)44.91 V
Current at Pmax (Imp)13.48 A
Open Circuit Voltage (Voc)53.39 V
Short Circuit Current (Isc)13.98 A

Mechanical Data

Dimensions2278 x 1134 x 35 mm
Weight28.2 kg
Cell TypeMonocrystalline
Number of Cells144
Front Glass3.2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.29 %/°C
Temperature Coefficient of Voc-0.24 %/°C
Temperature Coefficient of Isc0.05 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 2278 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Aiko Solar AIKO-A605-MAH72Mw (605W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 605W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Aiko Solar AIKO-A605-MAH72Mw is designed for specific solar energy applications. This panel is an excellent choice if you:

Need premium 605W panels for maximum power density
Maximize energy output in limited space (23.4% efficiency)
Install on commercial buildings with ample roof space
Install in hot climates (low temperature coefficient)
Value solid warranty protection
Install commercial or utility-scale systems

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Aiko Solar AIKO-A605-MAH72Mw panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 605W per panel, a typical 10kW residential system requires about 17 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Aiko Solar AIKO-A605-MAH72Mw?

This panel has an efficiency of 23.4%, using N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the Aiko Solar AIKO-A605-MAH72Mw?

The module dimensions are 2278mm × 1134mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Aiko Solar AIKO-A605-MAH72Mw compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Aiko Solar AIKO-A605-MAH72Mw come with?

This panel includes a 15-year product warranty from Aiko Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
