MonocrystallineBack ContactN-type

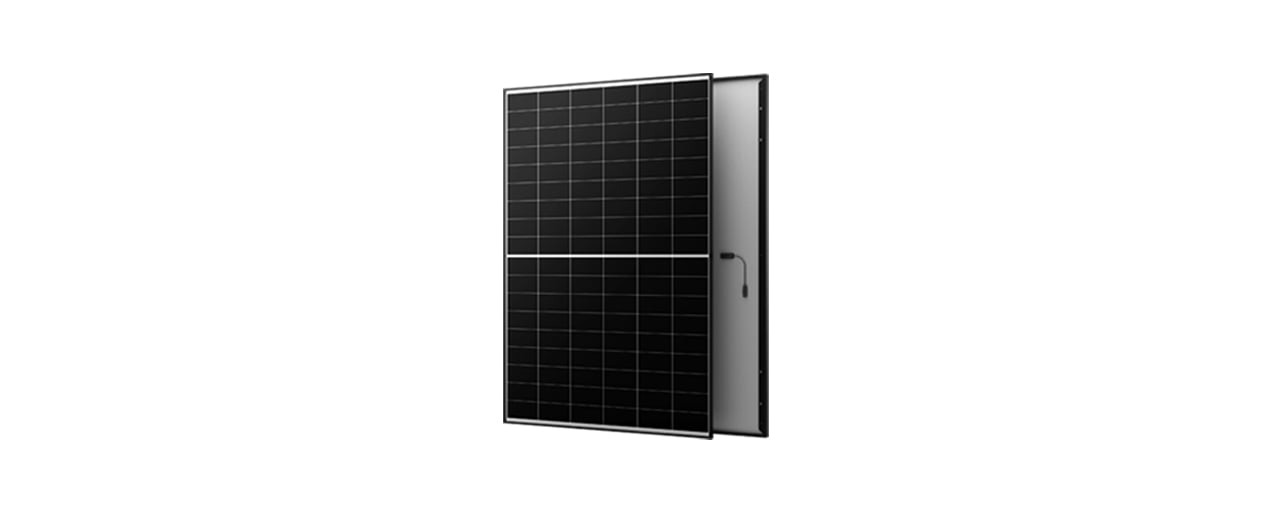

Aiko Solar undefined AIKO-A485-MAH54Mw

Aiko Solar • aiko neostar 2p aiko a450-485 mah54mw

AIKO-A485-MAH54Mw485W

Back ContactN-type
Region:Italy
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
485W
Power Output
24.3%
Efficiency
1757 x 1134
Dimensions (mm)
Find Installer

Key Features

  • Up to 24.3% efficiency
  • ≤1% First-year Degradation
  • ≤0.35% Annual Degradation from Year 2-30
  • N-Type ABC Cell Type
  • Anodized aluminum Frame
  • 3.2 mm tempered glass Front Cover
  • IP68, 3 bypass diodes Junction Box
  • MC4-Evo2 Connector

Aiko Solar AIKO-A485-MAH54Mw Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
21 Panels
Estimated Roof Area
452 sq.ft. (42 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)485 W
Module Efficiency24.3 %
Voltage at Pmax (Vmp)34.92 V
Current at Pmax (Imp)13.9 A
Open Circuit Voltage (Voc)41.36 V
Short Circuit Current (Isc)14.41 A

Mechanical Data

Dimensions1757 x 1134 x 30 mm
Weight21.5 kg
Cell TypeMonocrystalline
Number of Cells108
Front Glass3.2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.26 %/°C
Temperature Coefficient of Voc-0.22 %/°C
Temperature Coefficient of Isc0.05 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 1757 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Aiko Solar AIKO-A485-MAH54Mw (485W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 485W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Aiko Solar AIKO-A485-MAH54Mw is designed for specific solar energy applications. This panel is an excellent choice if you:

Want high-power 485W panels for better roof utilization
Maximize energy output in limited space (24.3% efficiency)
Install in hot climates (low temperature coefficient)

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Aiko Solar AIKO-A485-MAH54Mw panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 485W per panel, a typical 10kW residential system requires about 21 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Aiko Solar AIKO-A485-MAH54Mw?

This panel has an efficiency of 24.3%, using Back Contact, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the Aiko Solar AIKO-A485-MAH54Mw?

The module dimensions are 1757mm × 1134mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Aiko Solar AIKO-A485-MAH54Mw compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.
