MonocrystallineBifacialN-type

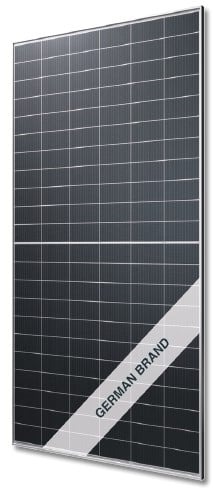

Axitec undefined AC-690TGB/132TS

Axitec • axibiperfect gxq ts 690-710wp

AC-690TGB/132TS690W

BifacialN-type
Region:Germany
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
690W
Power Output
22.21%
Efficiency
2384 x 1303
Dimensions (mm)
30 Yrs
Product Warranty
Find Installer

Key Features

  • High performance bifacial solar module
  • 132 halfcell, glass/glass, N-Type TOPCon
  • More performance through innovative TOP N-Type TOPCon-Technology
  • Up to 30% more power output by Bifacial-Technology
  • Increased safety through improved fire protection
  • PID reduced through glass/glass-Technology
  • Positive power sorting from 0-5 Wp
  • Natural degradation: max. 1% within the first year, thereafter max. 0.4% annually

Axitec AC-690TGB/132TS Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
15 Panels
Estimated Roof Area
506 sq.ft. (47 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)690 W
Module Efficiency22.21 %
Voltage at Pmax (Vmp)40.11 V
Current at Pmax (Imp)17.21 A
Open Circuit Voltage (Voc)47.74 V
Short Circuit Current (Isc)18.29 A

Mechanical Data

Dimensions2384 x 1303 x 35 mm
Weight38.0 kg
Cell TypeMonocrystalline
Number of Cells132
Front Glass2.0 mm
FrameAluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.31 %/°C
Temperature Coefficient of Voc-0.26 %/°C
Temperature Coefficient of Isc0.046 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1303 x 2384 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Axitec AC-690TGB/132TS (690W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 690W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Axitec AC-690TGB/132TS is designed for specific solar energy applications. This panel is an excellent choice if you:

Require ultra-high output 690W panels for commercial installations
Maximize energy output in limited space (22.2% efficiency)
Can benefit from ground-reflected light (bifacial design)
Install on commercial buildings with ample roof space
Install in hot climates (low temperature coefficient)
Want long-term reliability (30-year product warranty)

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Axitec AC-690TGB/132TS panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 690W per panel, a typical 10kW residential system requires about 15 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Axitec AC-690TGB/132TS?

This panel has an efficiency of 22.21%, using Bifacial, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial Axitec AC-690TGB/132TS?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the Axitec AC-690TGB/132TS?

The module dimensions are 2384mm × 1303mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Axitec AC-690TGB/132TS compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Axitec AC-690TGB/132TS come with?

This panel includes a 30-year product warranty from Axitec. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
