MonocrystallineBifacialTOPConN-type

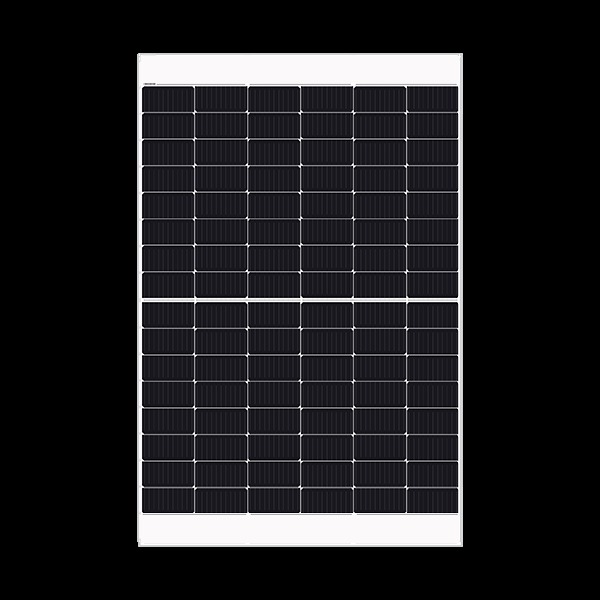

DMEGC Solar undefined 405

DMEGC Solar • agri and greenhouse gh395-410m10rt g48hsw lc

agri and greenhouse gh395-410m10rt g48hsw lc 405405W

BifacialTOPConN-type
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
405W
Power Output
21.65%
Efficiency
1650 x 1134
Dimensions (mm)
Find Installer

DMEGC Solar 405 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
25 Panels
Estimated Roof Area
506 sq.ft. (47 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)405 W
Module Efficiency21.65 %
Voltage at Pmax (Vmp)29.8 V
Current at Pmax (Imp)13.6 A
Open Circuit Voltage (Voc)35.64 V
Short Circuit Current (Isc)14.11 A

Mechanical Data

Dimensions1650 x 1134 x 25 mm
Weight19.4 kg
Cell TypeMonocrystalline
Number of Cells96
Front Glass1.6 mm
Frame

Temperature Ratings

Temperature Coefficient of Pmax-0.29 %/°C
Temperature Coefficient of Voc %/°C
Temperature Coefficient of Isc %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 1650 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the DMEGC Solar 405 (405W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 405W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The DMEGC Solar 405 is designed for specific solar energy applications. This panel is an excellent choice if you:

Build a standard residential 405W system
Prioritize high efficiency performance
Seek cutting-edge technology with superior efficiency
Install in hot climates (low temperature coefficient)

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many DMEGC Solar 405 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 405W per panel, a typical 10kW residential system requires about 25 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of DMEGC Solar 405?

This panel has an efficiency of 21.65%, using Bifacial, TOPCon, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial DMEGC Solar 405?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the DMEGC Solar 405?

The module dimensions are 1650mm × 1134mm × 25mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is DMEGC Solar 405 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.
