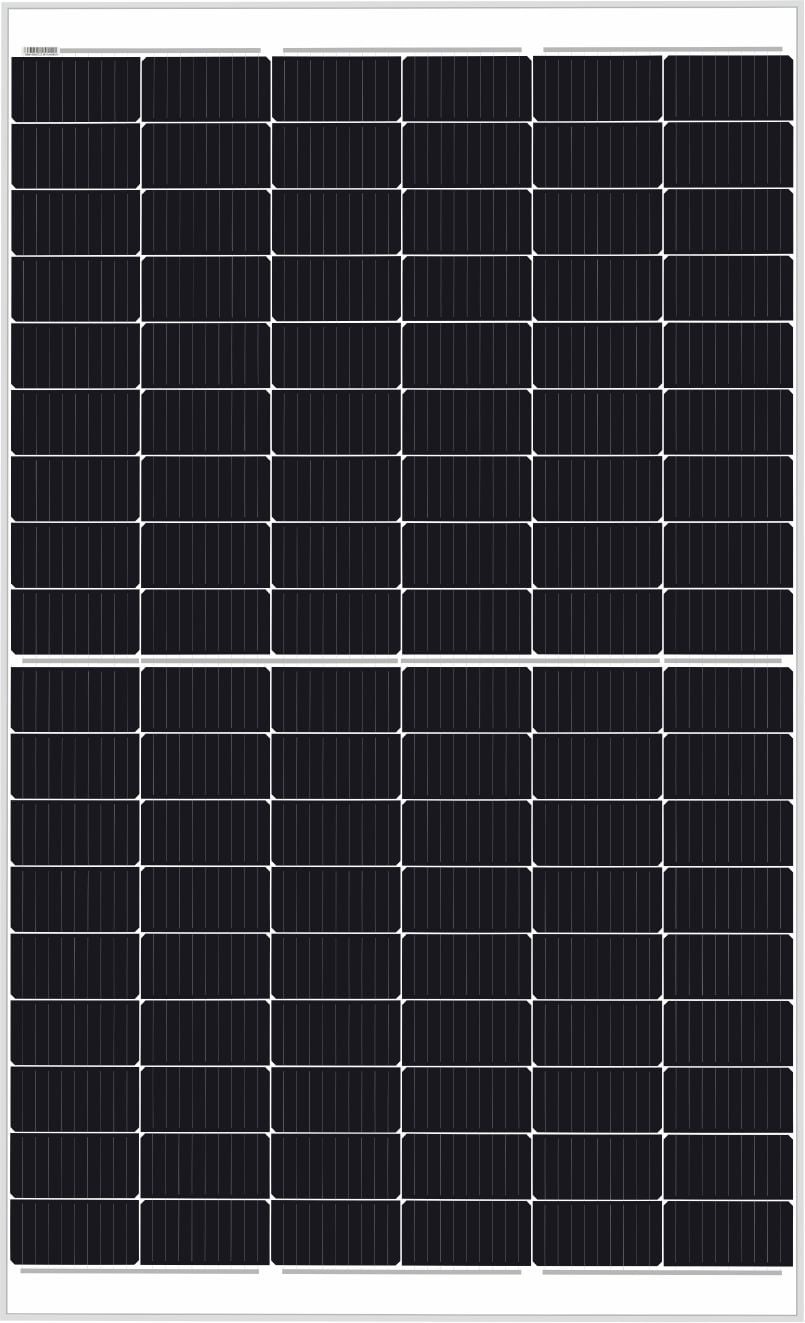

MonocrystallineTOPConBIPV
DMEGC Solar undefined 435

DMEGC Solar • agri and greenhouse gh430-445m10t b54hst

agri and greenhouse gh430-445m10t b54hst 435435W

TOPConBIPV
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
435W
Power Output
16.84%
Efficiency
2278 x 1134
Dimensions (mm)
15 Yrs
Product Warranty
Find Installer

DMEGC Solar 435 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
23 Panels
Estimated Roof Area
635 sq.ft. (59 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)435 W
Module Efficiency16.84 %
Voltage at Pmax (Vmp)32.96 V
Current at Pmax (Imp)13.21 A
Open Circuit Voltage (Voc)39.41 V
Short Circuit Current (Isc)13.96 A

Mechanical Data

Dimensions2278 x 1134 x 30 mm
Weight31.6 kg
Cell TypeMonocrystalline
Number of Cells108
Front Glass2 mm
Frame

Temperature Ratings

Temperature Coefficient of Pmax-0.29 %/°C
Temperature Coefficient of Voc-0.25 %/°C
Temperature Coefficient of Isc0.048 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 2278 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the DMEGC Solar 435 (435W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 435W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The DMEGC Solar 435 is designed for specific solar energy applications. This panel is an excellent choice if you:

Build a standard residential 435W system
Seek cutting-edge technology with superior efficiency
Install on commercial buildings with ample roof space
Install in hot climates (low temperature coefficient)
Value solid warranty protection

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many DMEGC Solar 435 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 435W per panel, a typical 10kW residential system requires about 23 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of DMEGC Solar 435?

This panel has an efficiency of 16.84%, using TOPCon, BIPV cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the DMEGC Solar 435?

The module dimensions are 2278mm × 1134mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is DMEGC Solar 435 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the DMEGC Solar 435 come with?

This panel includes a 15-year product warranty from DMEGC Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
