Polycrystalline

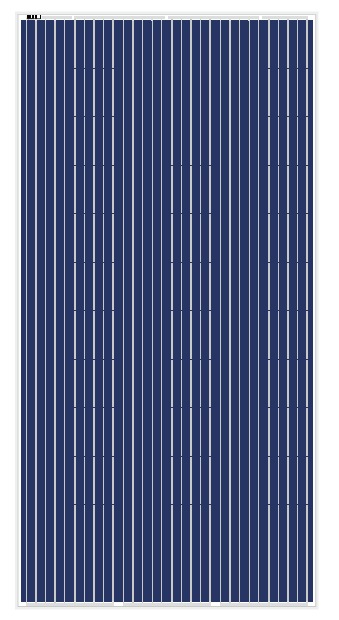

DMEGC Solar undefined DM330-P156-72

DMEGC Solar • dmegc solar dm330 p156-72

DM330-P156-72330W

Region:Netherlands
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
330W
Power Output
17.01%
Efficiency
1956 x 992
Dimensions (mm)
Find Installer

DMEGC Solar DM330-P156-72 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
31 Panels
Estimated Roof Area
646 sq.ft. (60 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)330 W
Module Efficiency17.01 %
Voltage at Pmax (Vmp)37.17 V
Current at Pmax (Imp)8.88 A
Open Circuit Voltage (Voc)46.12 V
Short Circuit Current (Isc)9.31 A

Mechanical Data

Dimensions1956 x 992 x 40 mm
Weight22.2 kg
Cell TypePolycrystalline
Number of Cells72
Front Glass3.2 mm
Frame

Temperature Ratings

Temperature Coefficient of Pmax-0.406 %/°C
Temperature Coefficient of Voc %/°C
Temperature Coefficient of Isc %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

992 x 1956 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the DMEGC Solar DM330-P156-72 (330W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 330W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The DMEGC Solar DM330-P156-72 is designed for specific solar energy applications. This panel is an excellent choice if you:

Have limited roof space (330W compact panels)
Operate in regions with high temperature variations
Use standard residential panel configurations

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many DMEGC Solar DM330-P156-72 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 330W per panel, a typical 10kW residential system requires about 31 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of DMEGC Solar DM330-P156-72?

This panel has an efficiency of 17.01%, using cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the DMEGC Solar DM330-P156-72?

The module dimensions are 1956mm × 992mm × 40mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is DMEGC Solar DM330-P156-72 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.
