MonocrystallineN-type

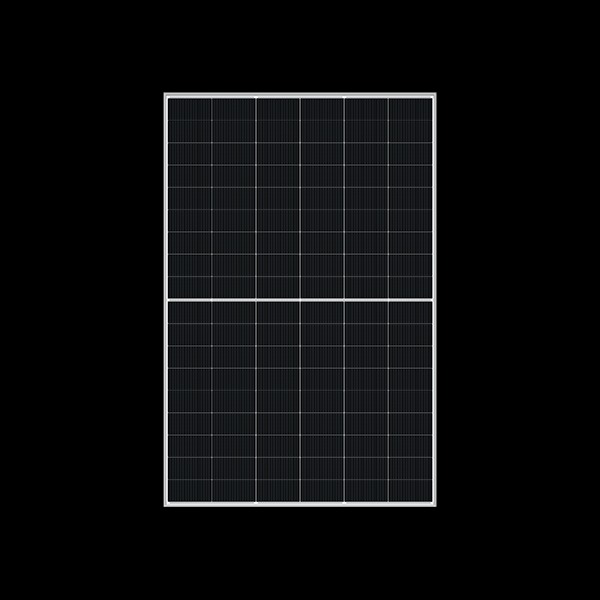

DMEGC Solar undefined DM465M10RT-54HSW

DMEGC Solar • infinity rt dm445-465m10rt 54hsw

DM465M10RT-54HSW465W

N-type
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
465W
Power Output
23.3%
Efficiency
1762 x 1134
Dimensions (mm)
20 Yrs
Product Warranty
Find Installer

Key Features

  • Increased energy yield due to optimized material use.
  • Higher Module Efficiency
  • Excellent resistance to harsh environmental conditions such as salt, ammonia, sand, and hail.
  • High Reliability
  • Focus on circular economy - low carbon footprint, PFAS-free and recyclable components.
  • Green Product
  • SA 8000: ILO Standards. Social responsibility standards
  • ISO 9001: Quality management system
  • ISO 14001: Environmental management system
  • ISO 45001: Occupational health and safety management system
  • ISO 50001: Energy management system
  • ISO 27001: Information security management system

DMEGC Solar DM465M10RT-54HSW Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
22 Panels
Estimated Roof Area
474 sq.ft. (44 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)465 W
Module Efficiency23.3 %
Voltage at Pmax (Vmp)34.51 V
Current at Pmax (Imp)13.48 A
Open Circuit Voltage (Voc)40.85 V
Short Circuit Current (Isc)14.38 A

Mechanical Data

Dimensions1762 x 1134 x 30 mm
Weight20.6 kg
Cell TypeMonocrystalline
Number of Cells108
Front Glass3.2 mm
Frame

Temperature Ratings

Temperature Coefficient of Pmax-0.29 %/°C
Temperature Coefficient of Voc-0.25 %/°C
Temperature Coefficient of Isc0.048 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 1762 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the DMEGC Solar DM465M10RT-54HSW (465W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 465W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The DMEGC Solar DM465M10RT-54HSW is designed for specific solar energy applications. This panel is an excellent choice if you:

Want high-power 465W panels for better roof utilization
Maximize energy output in limited space (23.3% efficiency)
Install in hot climates (low temperature coefficient)
Value solid warranty protection

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many DMEGC Solar DM465M10RT-54HSW panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 465W per panel, a typical 10kW residential system requires about 22 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of DMEGC Solar DM465M10RT-54HSW?

This panel has an efficiency of 23.3%, using N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the DMEGC Solar DM465M10RT-54HSW?

The module dimensions are 1762mm × 1134mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is DMEGC Solar DM465M10RT-54HSW compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the DMEGC Solar DM465M10RT-54HSW come with?

This panel includes a 20-year product warranty from DMEGC Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
