MonocrystallineBifacialTOPConN-type
Hanwha Q-Cells undefined 585

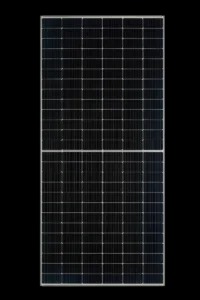

Hanwha Q-Cells • q.peak duo rsf xl g11s.3bfg 585-600w

q.peak duo rsf xl g11s.3bfg 585-600w 585585W

BifacialTOPConN-type
Region:Korea
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
585W
Power Output
21%
Efficiency
2462 x 1134
Dimensions (mm)
Find Installer

Key Features

  • Bifacial Q.ANTUM solar cells make efficient use of light shining on the module rear-side for radically improved LCOE.
  • Bifacial energy yield gain of up to 20%
  • Fast installation
  • Innovative S shape frame design including perfectly matched clamps, bringing innovation and convenience together for effortless setup.
  • Lowering carbon emission
  • High tech steel frame module generates significantly less CO2 pollution than standard aluminum frame.
  • Optimized frame shape reducing rear side shading and drainage slot for reducing soiling loss.
  • Enhanced bifaciality and self cleaning

Hanwha Q-Cells 585 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
18 Panels
Estimated Roof Area
538 sq.ft. (50 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)585 W
Module Efficiency21 %
Voltage at Pmax (Vmp)44.75 V
Current at Pmax (Imp)13.07 A
Open Circuit Voltage (Voc)53.57 V
Short Circuit Current (Isc)13.72 A

Mechanical Data

Dimensions2462 x 1134 x 35 mm
Weight36.4 kg
Cell TypeMonocrystalline
Number of Cells156
Front Glass2 mm
Frame

Temperature Ratings

Temperature Coefficient of Pmax-0.34 %/°C
Temperature Coefficient of Voc-0.27 %/°C
Temperature Coefficient of Isc0.04 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 2462 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Hanwha Q-Cells 585 (585W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 585W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Hanwha Q-Cells 585 is designed for specific solar energy applications. This panel is an excellent choice if you:

Need premium 585W panels for maximum power density
Prioritize high efficiency performance
Seek cutting-edge technology with superior efficiency
Install on commercial buildings with ample roof space
Install in hot climates (low temperature coefficient)
Install commercial or utility-scale systems

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Hanwha Q-Cells 585 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 585W per panel, a typical 10kW residential system requires about 18 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Hanwha Q-Cells 585?

This panel has an efficiency of 21%, using Bifacial, TOPCon, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial Hanwha Q-Cells 585?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the Hanwha Q-Cells 585?

The module dimensions are 2462mm × 1134mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Hanwha Q-Cells 585 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.
