MonocrystallineTOPConN-type

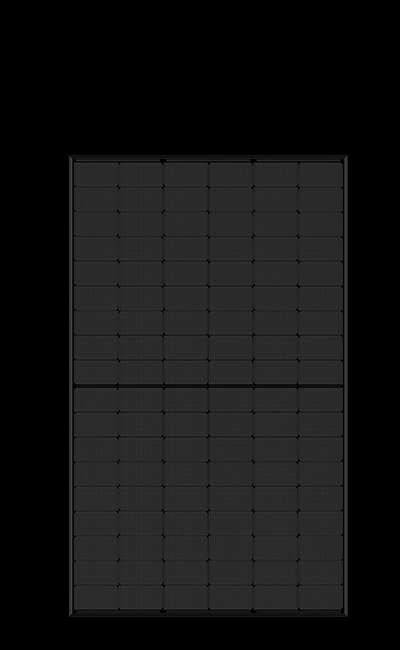

Jinko Solar undefined JKM440N-54HL4-B

Jinko Solar • eagle(r) g6r jkm420-440n 54hl4 b (us)

JKM440N-54HL4-B440W

TOPConN-type
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
440W
Power Output
22.53%
Efficiency
1722 x 1134
Dimensions (mm)
25 Yrs
Product Warranty
Find Installer

Key Features

  • Superior Aesthetics
  • Black backsheet and black frame create ideal look for residential applications.
  • N-Type Technology
  • N-type cells with Jinko’s in-house TOPCon technology offers better performance and improved reliability.
  • Thick and Tough
  • Fire Type 1 rated module engineered with a thick frame, 3.2mm front side glass, and thick backsheet for added durability.
  • Shade Tolerant
  • Twin array design allows continued performance even with shading by trees or debris.
  • Protected Against All Environments
  • Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow.

Jinko Solar JKM440N-54HL4-B Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
23 Panels
Estimated Roof Area
484 sq.ft. (45 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)440 W
Module Efficiency22.53 %
Voltage at Pmax (Vmp)32.99 V
Current at Pmax (Imp)13.34 A
Open Circuit Voltage (Voc)39.57 V
Short Circuit Current (Isc)13.8 A

Mechanical Data

Dimensions1722 x 1134 x 35 mm
Weight21.0 kg
Cell TypeMonocrystalline
Number of Cells108
Front Glass3.2 mm
FrameAnodized Aluminium, Black

Temperature Ratings

Temperature Coefficient of Pmax-0.29 %/°C
Temperature Coefficient of Voc-0.25 %/°C
Temperature Coefficient of Isc0.045 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 1722 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Jinko Solar JKM440N-54HL4-B (440W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 440W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Jinko Solar JKM440N-54HL4-B is designed for specific solar energy applications. This panel is an excellent choice if you:

Build a standard residential 440W system
Maximize energy output in limited space (22.5% efficiency)
Seek cutting-edge technology with superior efficiency
Install in hot climates (low temperature coefficient)
Want long-term reliability (25-year product warranty)
Prefer sleek, all-black aesthetic design

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Jinko Solar JKM440N-54HL4-B panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 440W per panel, a typical 10kW residential system requires about 23 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Jinko Solar JKM440N-54HL4-B?

This panel has an efficiency of 22.53%, using TOPCon, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the Jinko Solar JKM440N-54HL4-B?

The module dimensions are 1722mm × 1134mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Jinko Solar JKM440N-54HL4-B compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Jinko Solar JKM440N-54HL4-B come with?

This panel includes a 25-year product warranty from Jinko Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
