MonocrystallineBifacialTOPCon

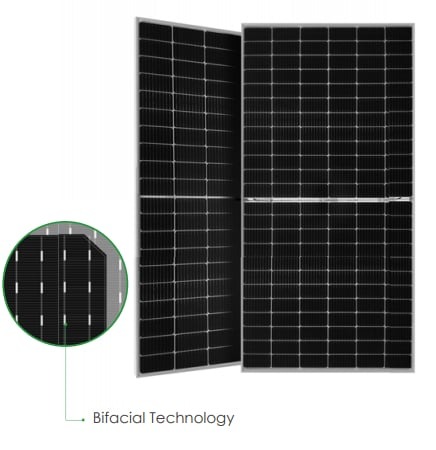

Jinko Solar undefined JKM540M-72HL4-TV

Jinko Solar • jinko solar tiger pro 72hc tv 525-545

JKM540M-72HL4-TV540W

BifacialTOPCon
Region:Netherlands
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
540W
Power Output
20.94%
Efficiency
2274 x 1134
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • Multi Busbar Technology
  • Light-weight design
  • Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
  • Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
  • 0.45% annual power degradation and 30 year linear power warranty.
  • Longer Life-time Power Yield

Jinko Solar JKM540M-72HL4-TV Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
19 Panels
Estimated Roof Area
527 sq.ft. (49 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)540 W
Module Efficiency20.94 %
Voltage at Pmax (Vmp)40.91 V
Current at Pmax (Imp)13.2 A
Open Circuit Voltage (Voc)49.49 V
Short Circuit Current (Isc)13.87 A

Mechanical Data

Dimensions2274 x 1134 x 35 mm
Weight28.0 kg
Cell TypeMonocrystalline
Number of Cells144
Front Glass3.2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.35 %/°C
Temperature Coefficient of Voc-0.28 %/°C
Temperature Coefficient of Isc0.048 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 2274 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Jinko Solar JKM540M-72HL4-TV (540W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 540W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Jinko Solar JKM540M-72HL4-TV is designed for specific solar energy applications. This panel is an excellent choice if you:

Want high-power 540W panels for better roof utilization
Prioritize high efficiency performance
Seek cutting-edge technology with superior efficiency
Install on commercial buildings with ample roof space
Install commercial or utility-scale systems

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Jinko Solar JKM540M-72HL4-TV panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 540W per panel, a typical 10kW residential system requires about 19 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Jinko Solar JKM540M-72HL4-TV?

This panel has an efficiency of 20.94%, using Bifacial, TOPCon cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

Can I get more power from the bifacial Jinko Solar JKM540M-72HL4-TV?

Yes. Since this is a Bifacial module, it can capture sunlight from both sides. Depending on the reflectivity (albedo) of your roof surface, you can see a gain of 5% to 25% in total energy yield.

What are the dimensions of the Jinko Solar JKM540M-72HL4-TV?

The module dimensions are 2274mm × 1134mm × 35mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Jinko Solar JKM540M-72HL4-TV compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Jinko Solar JKM540M-72HL4-TV come with?

This panel includes a 12-year product warranty from Jinko Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
