MonocrystallinePERC

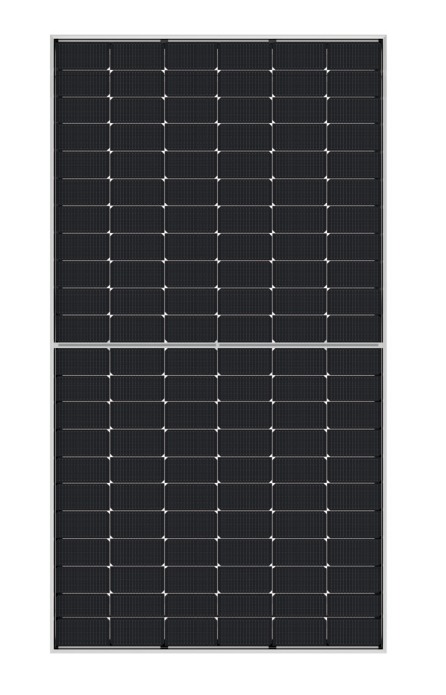

Jinko Solar undefined JKM630N-66HL4M-BDV

Jinko Solar • tiger neo 66hl4m bdv 605-630w

JKM630N-66HL4M-BDV630W

PERC
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
630W
Power Output
23.32%
Efficiency
2382 x 1134
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • IEC61215:2021 / IEC61730:2023
  • ISO9001:2015: Quality Management System
  • ISO14001:2015: Environment Management System
  • ISO45001:2018: Occupational health and safety management systems
  • IEC61701 / IEC62716 / IEC60068 / IEC62804
  • N-type modules with JinkoSolar's HOT 3.0 technology offer better reliability and efficiency.
  • Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
  • Certified to withstand: 5400 Pa front side max static test load, 2400 Pa rear side max static test load
  • Better light trapping and current collection to improve module power output and reliability.
  • Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
  • N-Type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance.

Jinko Solar JKM630N-66HL4M-BDV Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
16 Panels
Estimated Roof Area
463 sq.ft. (43 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)630 W
Module Efficiency23.32 %
Voltage at Pmax (Vmp)41.02 V
Current at Pmax (Imp)15.36 A
Open Circuit Voltage (Voc)49.48 V
Short Circuit Current (Isc)16.2 A

Mechanical Data

Dimensions2382 x 1134 x 30 mm
Weight32.4 kg
Cell TypeMonocrystalline
Number of Cells132
Front Glass2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.29 %/°C
Temperature Coefficient of Voc-0.29 %/°C
Temperature Coefficient of Isc-0.25 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 2382 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Jinko Solar JKM630N-66HL4M-BDV (630W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 630W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Jinko Solar JKM630N-66HL4M-BDV is designed for specific solar energy applications. This panel is an excellent choice if you:

Need premium 630W panels for maximum power density
Maximize energy output in limited space (23.3% efficiency)
Want proven monocrystalline technology for better performance
Install on commercial buildings with ample roof space
Install in hot climates (low temperature coefficient)

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Jinko Solar JKM630N-66HL4M-BDV panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 630W per panel, a typical 10kW residential system requires about 16 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Jinko Solar JKM630N-66HL4M-BDV?

This panel has an efficiency of 23.32%, using PERC cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the Jinko Solar JKM630N-66HL4M-BDV?

The module dimensions are 2382mm × 1134mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Jinko Solar JKM630N-66HL4M-BDV compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Jinko Solar JKM630N-66HL4M-BDV come with?

This panel includes a 12-year product warranty from Jinko Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
