MonocrystallinePERC

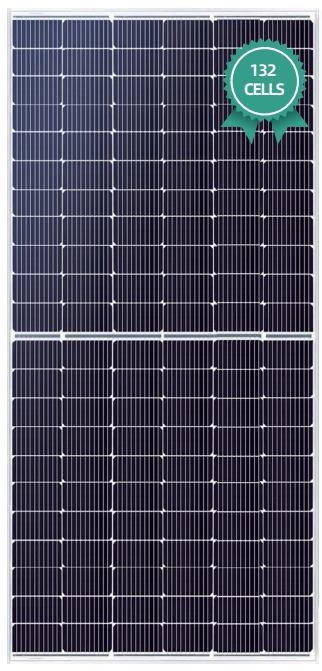

Phono Solar undefined WH PS490M6H-22

Phono Solar • twinplus mono m6-490-510w

WH PS490M6H-22495W

PERC
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
495W
Power Output
20.85%
Efficiency
2094 x 1134
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • Outstanding Product Performance
  • Competitive high-temperature performance with ameliorated temperature coefficient
  • Minimized power loss in cell connection
  • Better performance under shading effect
  • Decreased nominal operating cell temperature to 45 ± 2°C
  • Higher power generation with multi-busbar and half-cut technology
  • Trustworthy Quality And Reliability
  • Guaranteed 0~+5W positive tolerance secures reliable power output
  • 5400Pa maximum snow load, 2400Pa maximum wind load
  • Optimized electrical design lowers hot spot risk and operating current
  • PID Resistant
  • Industry-leading cell processing technology and electrical design ensure solid PID resistance

Phono Solar WH PS490M6H-22 Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
21 Panels
Estimated Roof Area
538 sq.ft. (50 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)495 W
Module Efficiency20.85 %
Voltage at Pmax (Vmp)37.91 V
Current at Pmax (Imp)13.06 A
Open Circuit Voltage (Voc)45.28 V
Short Circuit Current (Isc)13.62 A

Mechanical Data

Dimensions2094 x 1134 x 30 mm
Weight26.0 kg
Cell TypeMonocrystalline
Number of Cells132
Front Glass3.2 mm
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.33 %/°C
Temperature Coefficient of Voc-0.26 %/°C
Temperature Coefficient of Isc0.042 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1134 x 2094 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Phono Solar WH PS490M6H-22 (495W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 495W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Phono Solar WH PS490M6H-22 is designed for specific solar energy applications. This panel is an excellent choice if you:

Want high-power 495W panels for better roof utilization
Prioritize high efficiency performance
Want proven monocrystalline technology for better performance
Install in hot climates (low temperature coefficient)

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Phono Solar WH PS490M6H-22 panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 495W per panel, a typical 10kW residential system requires about 21 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Phono Solar WH PS490M6H-22?

This panel has an efficiency of 20.85%, using PERC cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the Phono Solar WH PS490M6H-22?

The module dimensions are 2094mm × 1134mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Phono Solar WH PS490M6H-22 compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Phono Solar WH PS490M6H-22 come with?

This panel includes a 12-year product warranty from Phono Solar. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
