MonocrystallinePERCTOPConHJTN-type

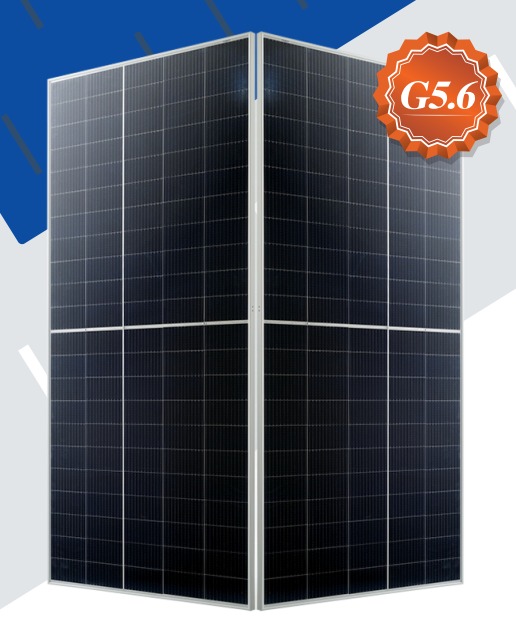

Risen Energy undefined RSM110-8-550BMDG

Risen Energy • titan rsm110-8-535bmdg 560bmdg

RSM110-8-550BMDG550W

PERCTOPConHJTN-type
Region:China
Region shows where the seller or factory is located. Most ship globally, and all listed suppliers should be able to ship to your current location.
550W
Power Output
21%
Efficiency
2384 x 1096
Dimensions (mm)
12 Yrs
Product Warranty
Find Installer

Key Features

  • Positive power tolerance of 0~+3%
  • PID Excellent PID resistance
  • Module Imp binning radically reduces string mismatch losses
  • Dual stage 100% EL Inspection warranting E L defect-free product 2
  • Excellent low irradiance performance
  • Industry leading lowest thermal co-efficient of power
  • Global, Tier 1 bankable brand, with independently TIER 1 certified state-of-the-art automated manufacturing
  • Bifacial technology enables additional energy harvesting from rear side (up to 30%)

Risen Energy RSM110-8-550BMDG Panels: What Your System Looks Like

Based on a standard 10kW residential installation

10kW System Size
19 Panels
Estimated Roof Area
538 sq.ft. (50 m²)
Avg. Yearly Production
11,500 kWh
Generate Professional Technical Report & ROI

Electrical Data (STC)

Maximum Power (Pmax)550 W
Module Efficiency21 %
Voltage at Pmax (Vmp)31.96 V
Current at Pmax (Imp)17.22 A
Open Circuit Voltage (Voc)38.32 V
Short Circuit Current (Isc)18.23 A

Mechanical Data

Dimensions2384 x 1096 x 30 mm
Weight33.5 kg
Cell TypeMonocrystalline
Number of Cells110
Front Glass0
FrameAnodized Aluminium

Temperature Ratings

Temperature Coefficient of Pmax-0.34 %/°C
Temperature Coefficient of Voc-0.25 %/°C
Temperature Coefficient of Isc0.04 %/°C
Operating Temperature Range-40 - 85 °C

Similar Products

1096 x 2384 mm
Roof Fit Tool

Will These Panels Fit Your Roof?

Don’t guess your solar potential. Our Roof Layout Designer uses the exact dimensions of the Risen Energy RSM110-8-550BMDG (550W modules) to map out your system. Visually plan your array to see exactly how many modules your roof can support based on its specific footprint.

Precision Layout Preview: See exactly how the 550W modules sit on your roof.
Accurate Technical Spacing: Factors in real-world gaps and mounting rails.
Instant System Sizing: Automatically calculates total kW output for this specific panel.
Optimization Tips: Suggestions to maximize your roof’s energy density.
Map This Panel on My Roof

Ideal Use Case

The Risen Energy RSM110-8-550BMDG is designed for specific solar energy applications. This panel is an excellent choice if you:

Want high-power 550W panels for better roof utilization
Prioritize high efficiency performance
Want proven monocrystalline technology for better performance
Install on commercial buildings with ample roof space
Install in hot climates (low temperature coefficient)

Don’t guess your solar setup — calculate it first!

Take our Solar Quiz to get a personalized recommendation for panels, inverter, battery capacity, and system size — before you spend money on the wrong setup.

Run Technical Sizing

Product FAQ

How many Risen Energy RSM110-8-550BMDG panels do I need for my home?

The number of panels depends on your energy consumption and roof area. At 550W per panel, a typical 10kW residential system requires about 19 modules. Use our Solar Roof Calculator to get a precise layout based on your actual roof dimensions.

What is the efficiency of Risen Energy RSM110-8-550BMDG?

This panel has an efficiency of 21%, using PERC, TOPCon, HJT, N-type cell technology. Higher efficiency means more electricity per square meter, which is especially valuable when roof space is limited.

What are the dimensions of the Risen Energy RSM110-8-550BMDG?

The module dimensions are 2384mm × 1096mm × 30mm. Always account for these measurements plus fire setbacks and mounting clearances when planning your solar layout.

Is Risen Energy RSM110-8-550BMDG compatible with standard inverters?

Yes, these panels work with most string and hybrid inverters. However, you must check the Voc (Open Circuit Voltage) and Imp (Current at Max Power) against your inverter's MPPT specs.

What warranty does the Risen Energy RSM110-8-550BMDG come with?

This panel includes a 12-year product warranty from Risen Energy. Solar panels typically degrade about 0.4–0.5% per year, meaning this module should retain over 87% of its original output after 30 years.
